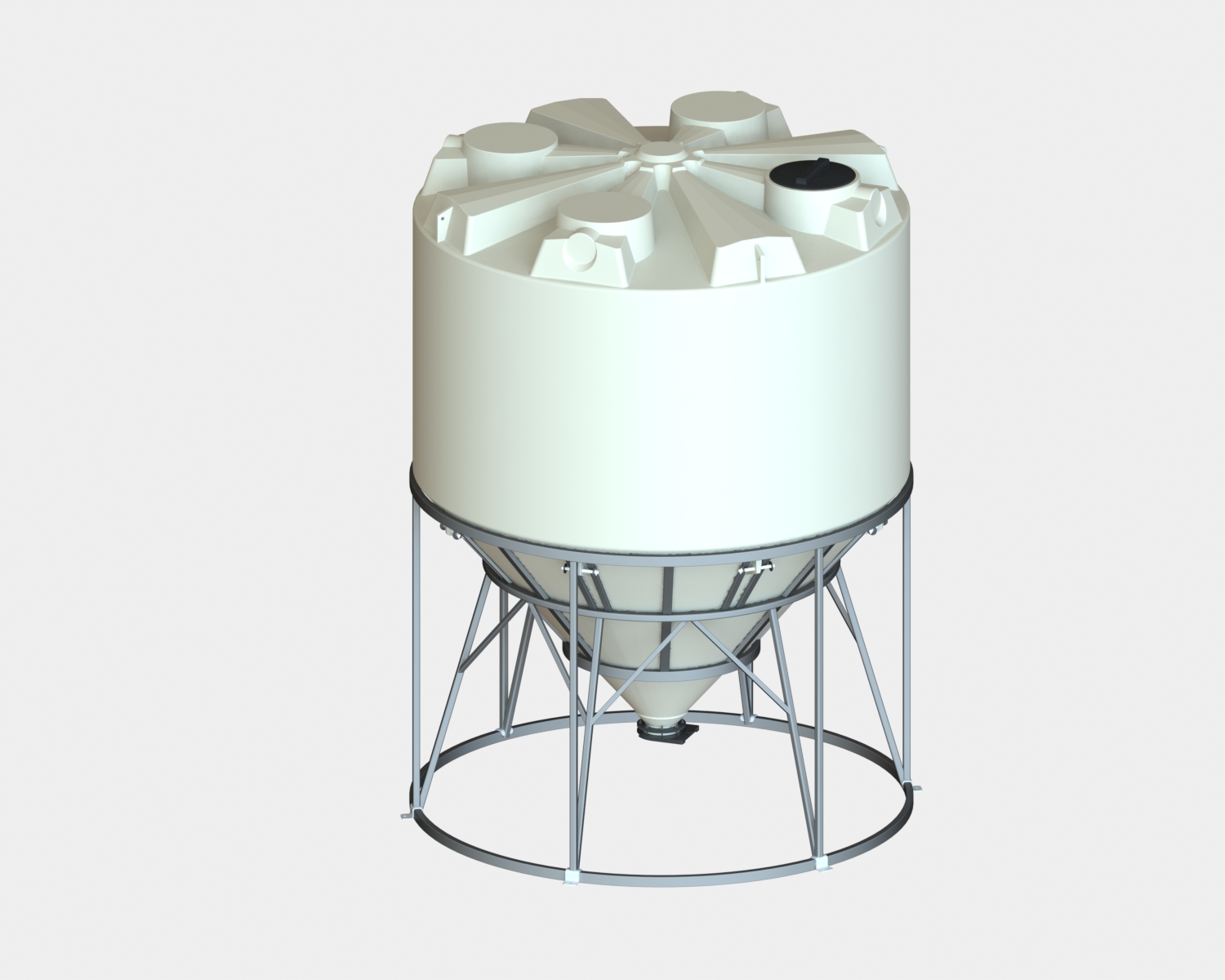

25,000ltr Cone Bottom Tank Liquid or Dry

25,000ltr Cone Bottom Tank Liquid or Dry

Ultimate Volume Storage 25000L storage silos suitable for all types of liquid supplements, dry feed and fertiliser storage.

Polymaster’s Cone Bottom Tanks provide the ultimate storage solution for dry bulk and liquid storage or processing applications.

  • Steep 50 degree cone
  • Heavy Duty DuraGal frame (other materials available)
  • Ideal for sludge clarification and thickening applications
  • Multiple outlet options available – Liquid or Dry
  • Custom pipework can be installed
  • Heavy Duty Frame 2380 Ø x 4210Hmm
Code Capacity Diameter Height SG Rating Contents Material Frame Material Lifting Lugs Cone Angle Warranty Datasheet Drawings CADs
SM25000LNAT 25,000ltrs 3450mm 4815mm 1 Liquid Hexene PE DuraGal 4 50 ° 5 Years Datasheet Drawing STEP
SM25000DNAT 25,000ltrs 3450mm 4815mm 1 Dry Hexene PE DuraGal 4 50 ° 5 Years Datasheet Drawing STEP
SM25000LNAT-1.5 25,000ltrs 3450mm 4815mm 1.5 Liquid Hexene PE DuraGal 4 50 ° 5 Years Datasheet Drawing STEP
SM25000DNAT-1.5 25,000ltrs 3450mm 4815mm 1.5 Dry Hexene PE DuraGal 4 50 ° 5 Years Datasheet Drawing STEP

Durable Construction
A One-Piece tank moulded from UV Stabilised, Food Grade MDPE and mounted to a fully Galvanised support structure.
