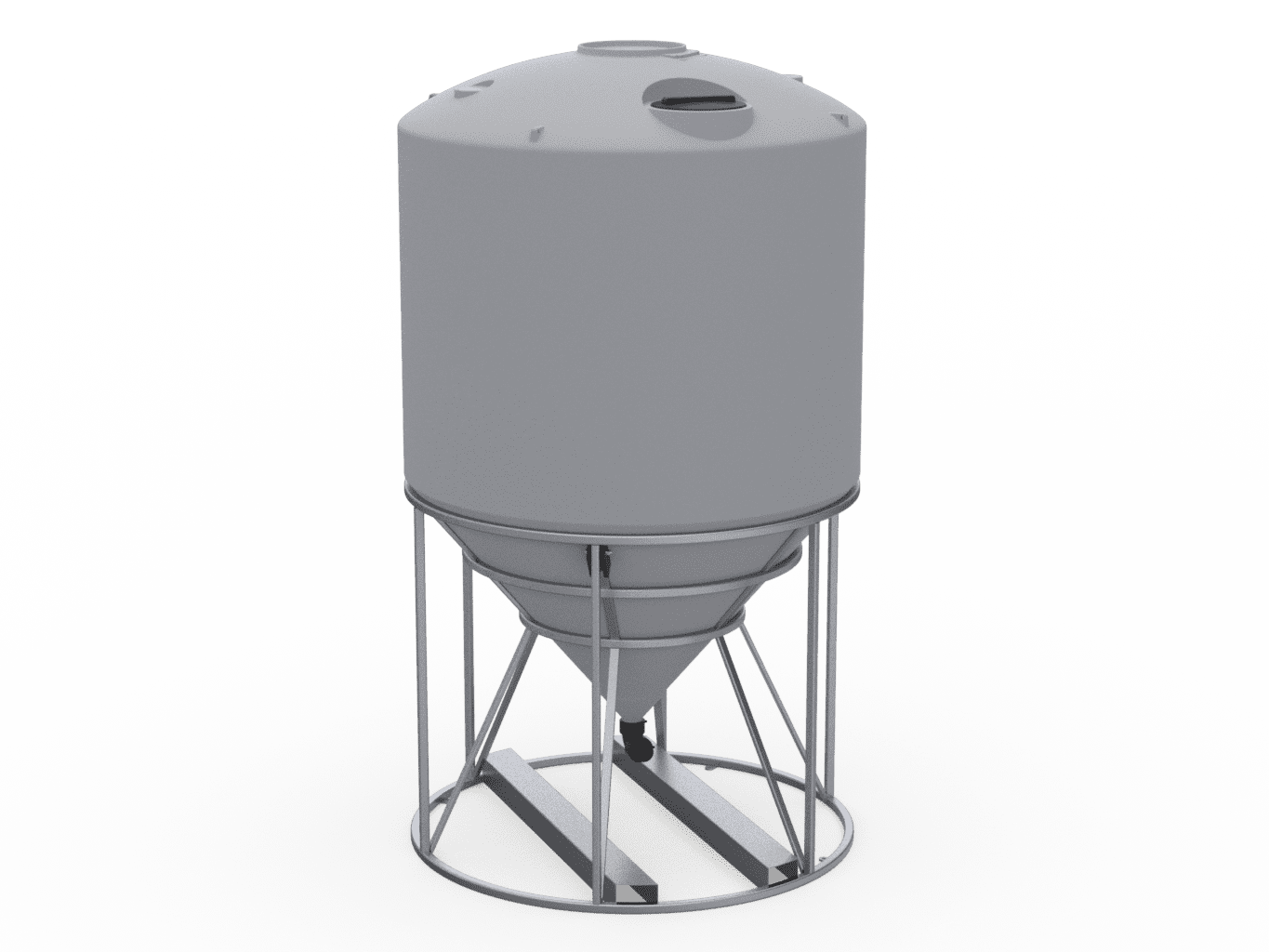

10,000ltr Cone Bottom Tank Liquid or Dry

10,000ltr Cone Bottom Tank Liquid or Dry

Ultimate Volume Storage 10000L storage silos suitable for all types of liquid supplements, dry feed and fertiliser storage.

Polymaster’s Cone Bottom Tanks provide the ultimate storage solution for dry bulk and liquid storage or processing applications.

  • Steep 50 degree cone
  • Heavy Duty DuraGal frame (other materials available)
  • Fork channels integrated into frame
  • Ideal for sludge clarification and thickening applications
  • Multiple outlet options available – Liquid or Dry
  • Custom pipework can be installed
  • Heavy Duty Frame 2380 Ø x 4210Hmm



Code Capacity Diameter Height SG Rating Contents Material Frame Material Lifting Lugs Cone Angle Warranty Datasheet Drawings CADs
SM10000L 10,000 Ltrs 2380mm 4210mm 1 Liquid Hexene PE DuraGal 4 50 ° 5 Years Datasheet Drawing STEP
SM10000D 10,000 Ltrs 2380mm 4210mm 1 Dry Hexene PE DuraGal 4 50 ° 5 Years Datasheet Drawing STEP
SM10000HDL 10,000 Ltrs 2380mm 4210mm 1.5 Liquid Hexene PE DuraGal 4 50 ° 5 Years Datasheet Drawing STEP
SM10000HDD 10,000 Ltrs 2380mm 4210mm 1.5 Dry Hexene PE DuraGal 4 50 ° 5 Years Datasheet Drawing STEP

Durable Construction
A One-Piece tank moulded from UV Stabilised, Food Grade MDPE and mounted to a fully Galvanised support structure.

Re-locatable
For ease of repositioning, the support structure incorporates fork channels which allow the silo to be moved with a minimum 2ton Fork truck when empty.
(For Static Storage with Heavy Duty Frame option only)

  •  Hinged lid for easy access
  •  Rodent and weatherproof
