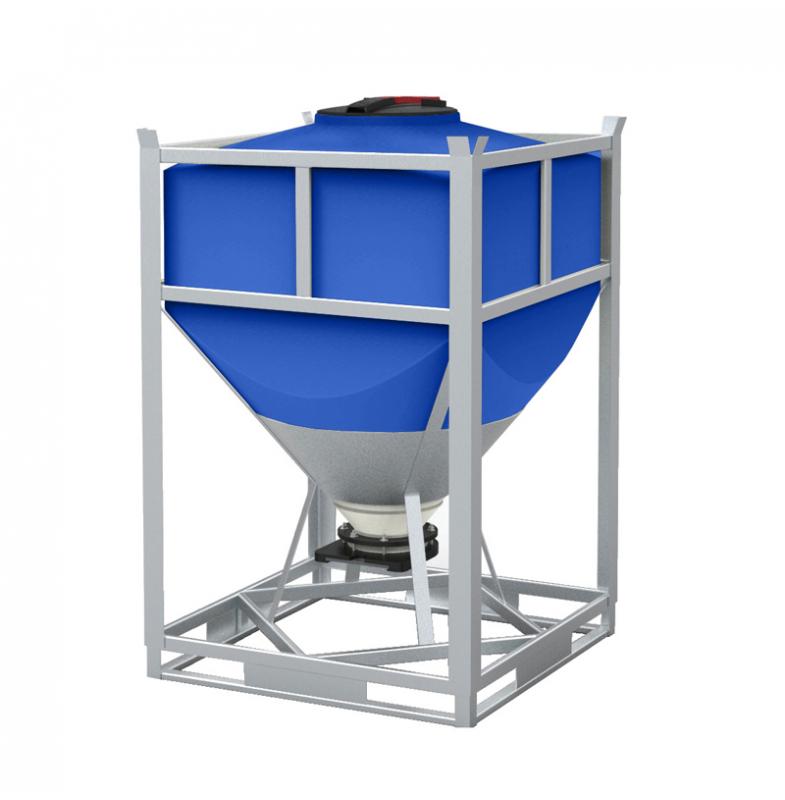

Cone Bottom Tank 1000L Liquid or Dry Outlet
MB100
Polymaster’s Cone Bottom Tanks provide the ultimate storage solution for dry bulk and liquid storage or processing applications.
- Steep 50 degree cone
- Heavy Duty DuraGal frame (other materials available)
- Fork channels integrated into frame
- Ideal for sludge clarification and thickening applications

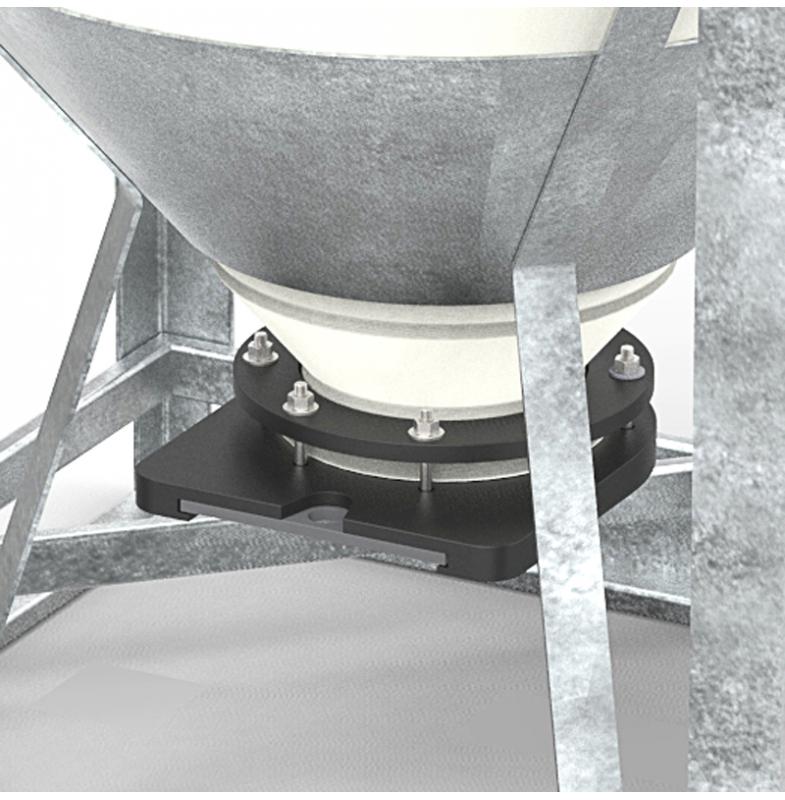

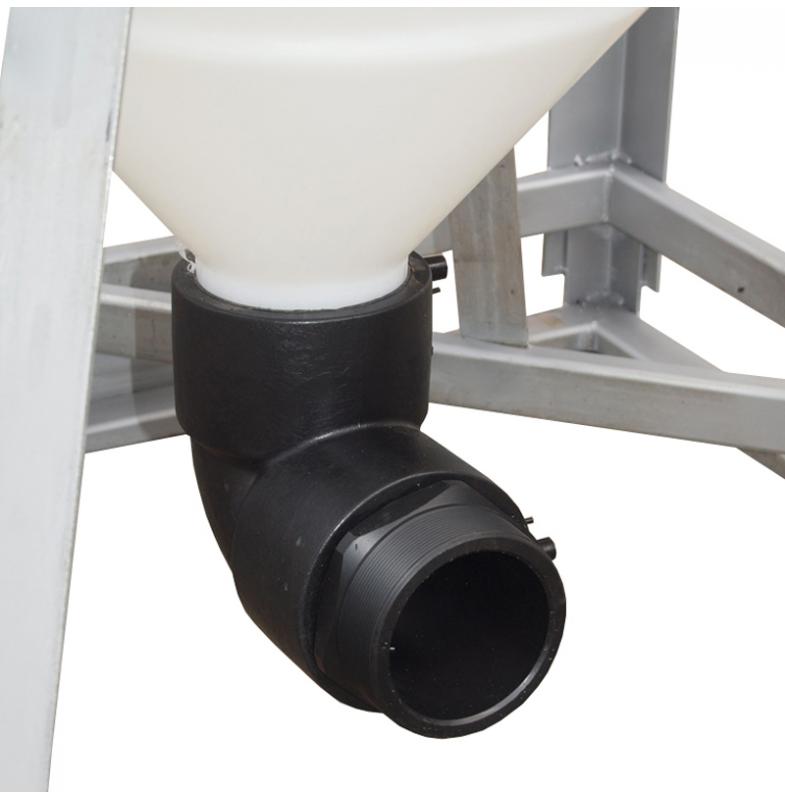

- Multiple outlet options available – Liquid or Dry
- Custom pipework can be installed

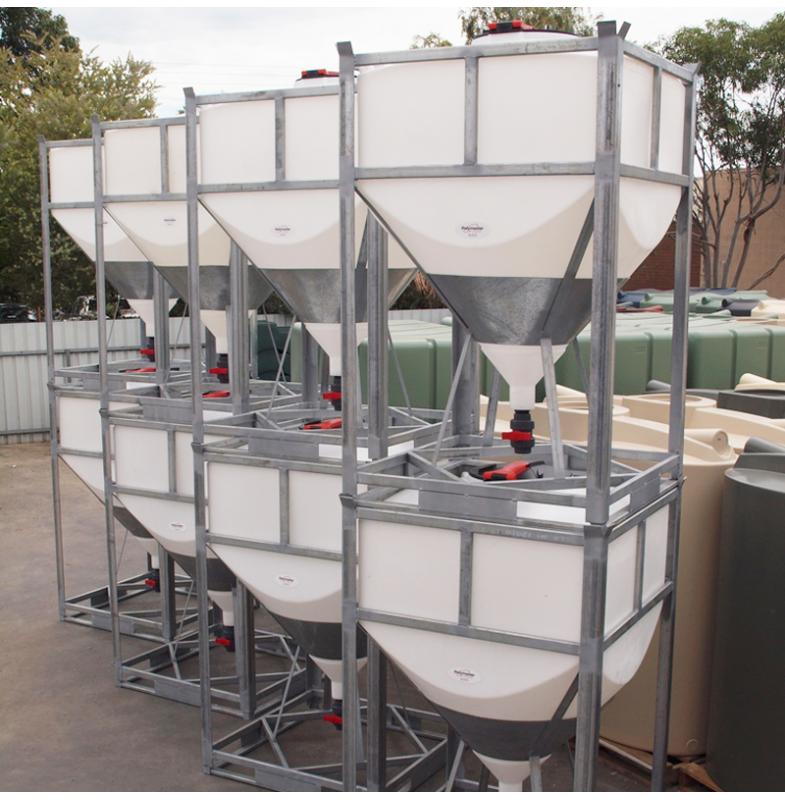

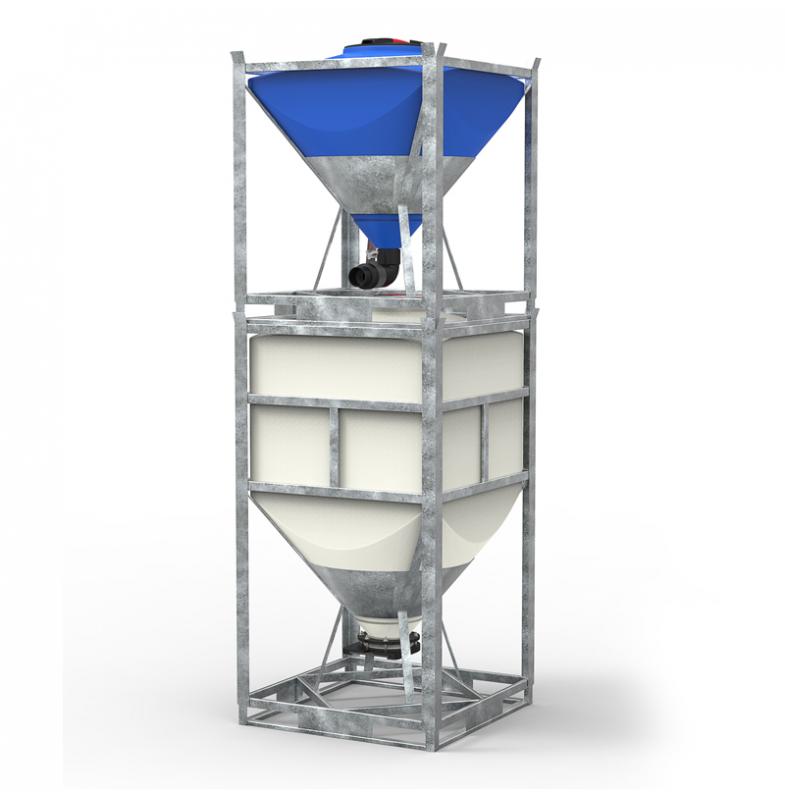

- Transportable and stackable
Code | Capacity | Diameter | Height | SG Rating | Outlet Type | Material | Frame Material | Lifting Lugs | Cone Angle | Warranty | Datasheet | Drawings | CADs |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MB100L | 1,000 Ltrs | 1165 x 1165mm | 1790mm | 2 | Liquid | Hexene PE | DuraGal | N/A | 50 ° | 5 Years | Datasheet | Drawing | STEP |
MB100P | 1,000 Ltrs | 1165 x 1165mm | 1790mm | 2 | Dry | Hexene PE | DuraGal | N/A | 50 ° | 5 Years | Datasheet | Drawing | STEP |
Polymaster’s Industrial Conical Vessels provide the ultimate solution for processes and chemicals requiring cone-bottom tanks.
- Ideal for sludge clarification and thickening applications
- Multiple outlet options available – Liquid or Powder
- Custom pipework can be installed
Questions? We are here to help.
We know that sometimes solutions involve some out of the box thinking, we work with you to make a custom solution that matches your exact situation and actually solves your problem. Fill out this form and our team will be in touch. or call us below.
