Enclosed IBC Bund
ENIBCB
Enclosed IBC Bund
ENIBCB
All Weather Polyethylene IBC Storage & Dispensing
Polymaster’s unique Enclosed IBC Bund solves many of the problems associated with IBC storage and chemical/fluid decanting in a weather-resistant, purpose-built enclosure.

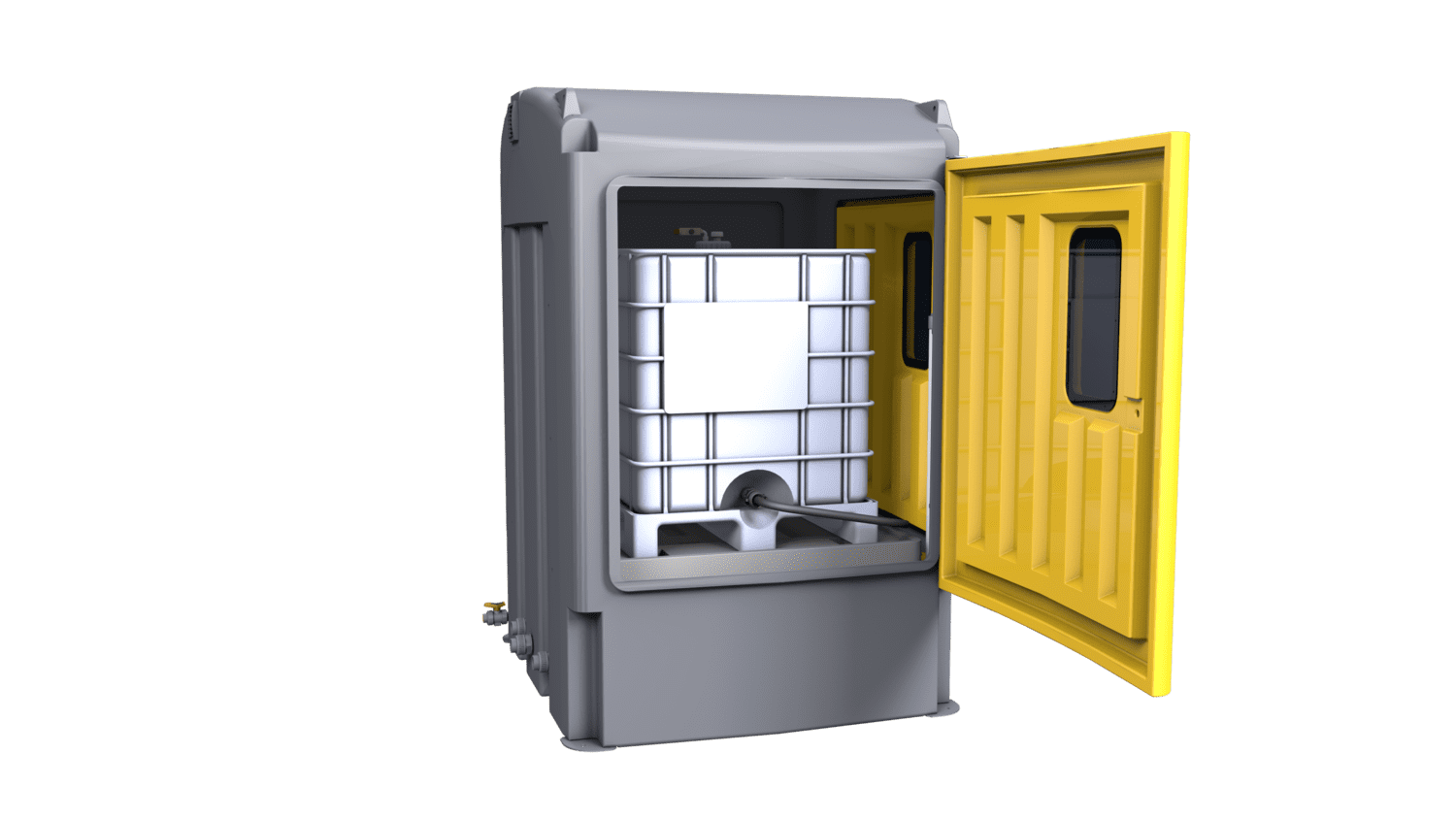

Constructed from high-grade polyethylene material, the Polymaster Enclosed IBC Bund allows for easy forklift movement of IBC’s in/out, with simple connection made to a 250 litre day tank and eliminating OH&S issues associated with IBC handling.
Prevent OH&S incidents with easy and safe connection to the IBC transfer hose. No residual chemical spills.
| Description | Code | Capacity | L x W | Height | Max. SG Rating | Material | Warranty | Datasheet | Drawings | CADs |
|---|---|---|---|---|---|---|---|---|---|---|

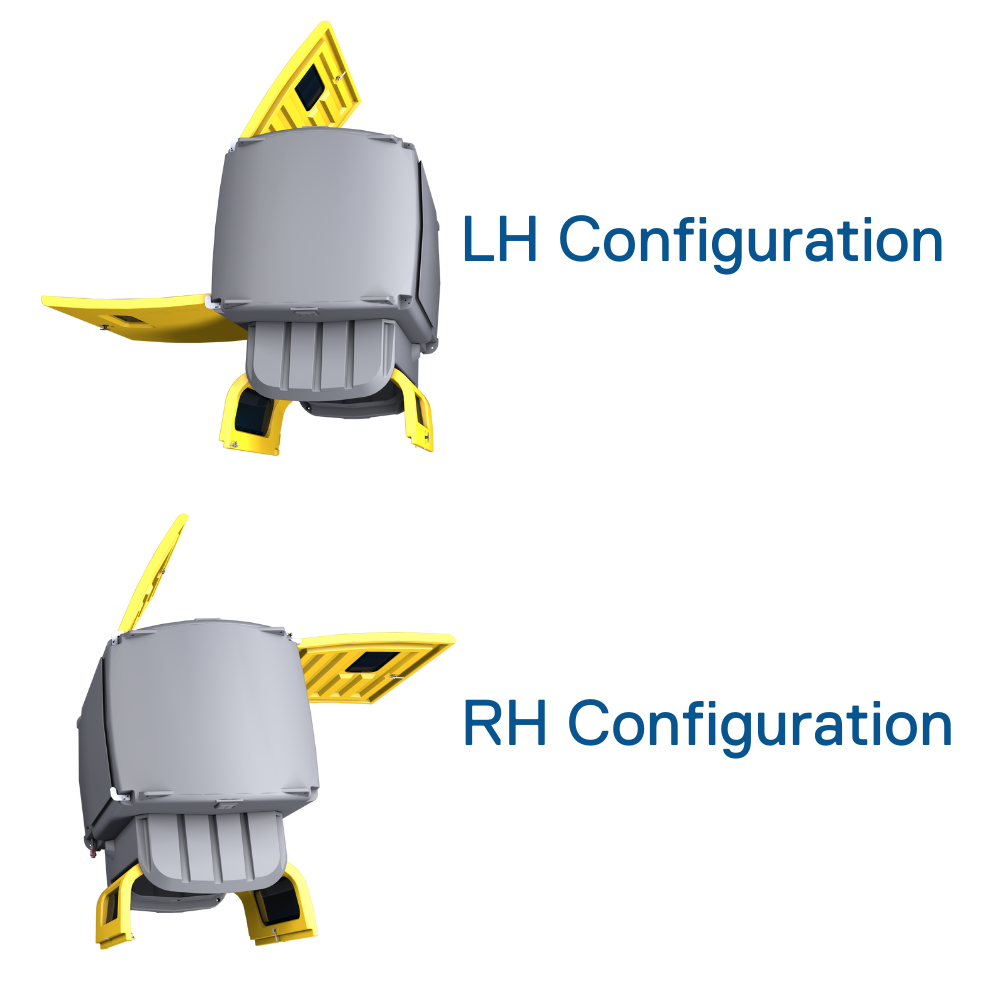

| Enclosed IBC Bund - LH Configuration | ENIBCB-LH | 1250L | 1690 x 1905mm | 2445mm | 2 | PE | 12 Months | Datasheet | Drawing | STEP |
| Enclosed IBC Bund - LH Configuration with Cabinet | ENIBCB-LH-C | 1250L | 2385 X 1095mm | 2445mm | 2 | PE | 12 Months | Datasheet | Drawing | STEP |
| Enclosed IBC Bund - LH Configuration with Cabinet, Day Tank, Hoses & Vent | ENIBCB-LH-C-DY | 1250L | 2385 X 1095mm | 2445mm | 2 | PE | 12 Months | Datasheet | Drawing | STEP |
| Enclosed IBC Bund - LH Configuration with Cabinet, Day Tank, Hoses & Vent - Aggressive Chemicals | ENIBCB-LH-C-DY-AGC | 1250L | 2385 X 1095mm | 2445mm | 2 | PE | 12 Months | Datasheet | Drawing | STEP |
| Enclosed IBC Bund - LH Configuration with Day Tank, Hoses & Vent Tube | ENIBCB-LH-DY | 1250L | 1690 x 1905mm | 2445mm | 2 | PE | 12 Months | Datasheet | Drawing | STEP |
| Enclosed IBC Bund - LH Configuration with Day Tank, Hoses & Vent - Aggressive Chemicals | ENIBCB-LH-DY-AGC | 1250L | 1690 x 1905mm | 2445mm | 2 | PE | - | Datasheet | Drawing | STEP |

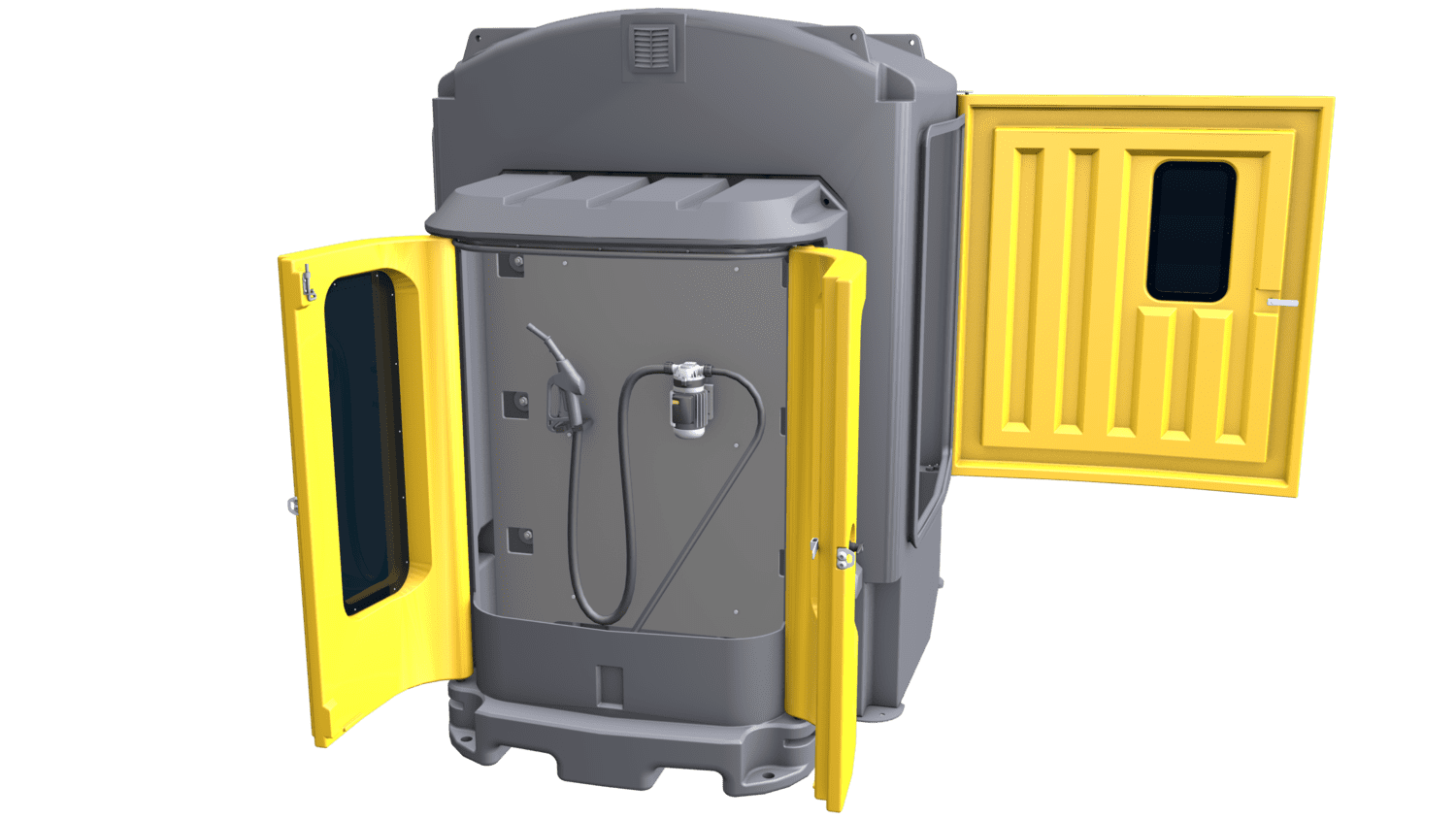

| Enclosed IBC Bund - LH Configuration with Cabinet, Day Tank, Hoses, Vent and Pump Dispensing System | ENIBCB-LH-PUMP | 1250L | 2385 X 1095mm | 2445mm | 2 | PE | - | Datasheet | Drawing | STEP |
| Enclosed IBC Bund - RH Configuration | ENIBCB-RH | 1250L | 1690 x 1905mm | 2445mm | 2 | PE | - | Datasheet | Drawing | STEP |
| Enclosed IBC Bund - RH Configuration with Cabinet | ENIBCB-RH-C | 1250L | 2385 X 1095mm | 2445mm | 2 | PE | - | Datasheet | Drawing | STEP |
| Enclosed IBC Bund - RH Configuration with Cabinet, Day Tank, Hoses & Vent | ENIBCB-RH-C-DY | 1250L | 2385 X 1095mm | 2445mm | 2 | PE | - | Datasheet | Drawing | STEP |
| Enclosed IBC Bund - RH Configuration with Cabinet, Day Tank, Hoses & Vent - Aggressive Chemicals | ENIBCB-RH-C-DY-AGC | 1250L | 2385 X 1095mm | 2445mm | 2 | PE | - | Datasheet | Drawing | STEP |
| Enclosed IBC Bund - RH Configuration with Day Tank, Hoses & Vent | ENIBCB-RH-DY | 1250L | 1690 x 1905mm | 2445mm | 2 | PE | - | Datasheet | Drawing | STEP |
| Enclosed IBC Bund - RH Configuration with Day Tank, Hoses & Vent - Aggressive Chemicals | ENIBCB-RH-DY-AGC | 1250L | 1690 x 1905mm | 2445mm | 2 | PE | - | Datasheet | Drawing | STEP |
| Enclosed IBC Bund - RH Configuration with Cabinet, Day Tank, Hoses, Vent and Pump Dispensing System | ENIBCB-RH-PUMP | 1250L | 2385 X 1095mm | 2445mm | 2 | PE | - | Datasheet | Drawing | STEP |
The Polymaster Enclosed IBC Bund solves many issues with the storage and dispensing of chemicals from IBCs, including:
- Rainwater resistant doors holds chemical spray inside and prevents rainwater ingress

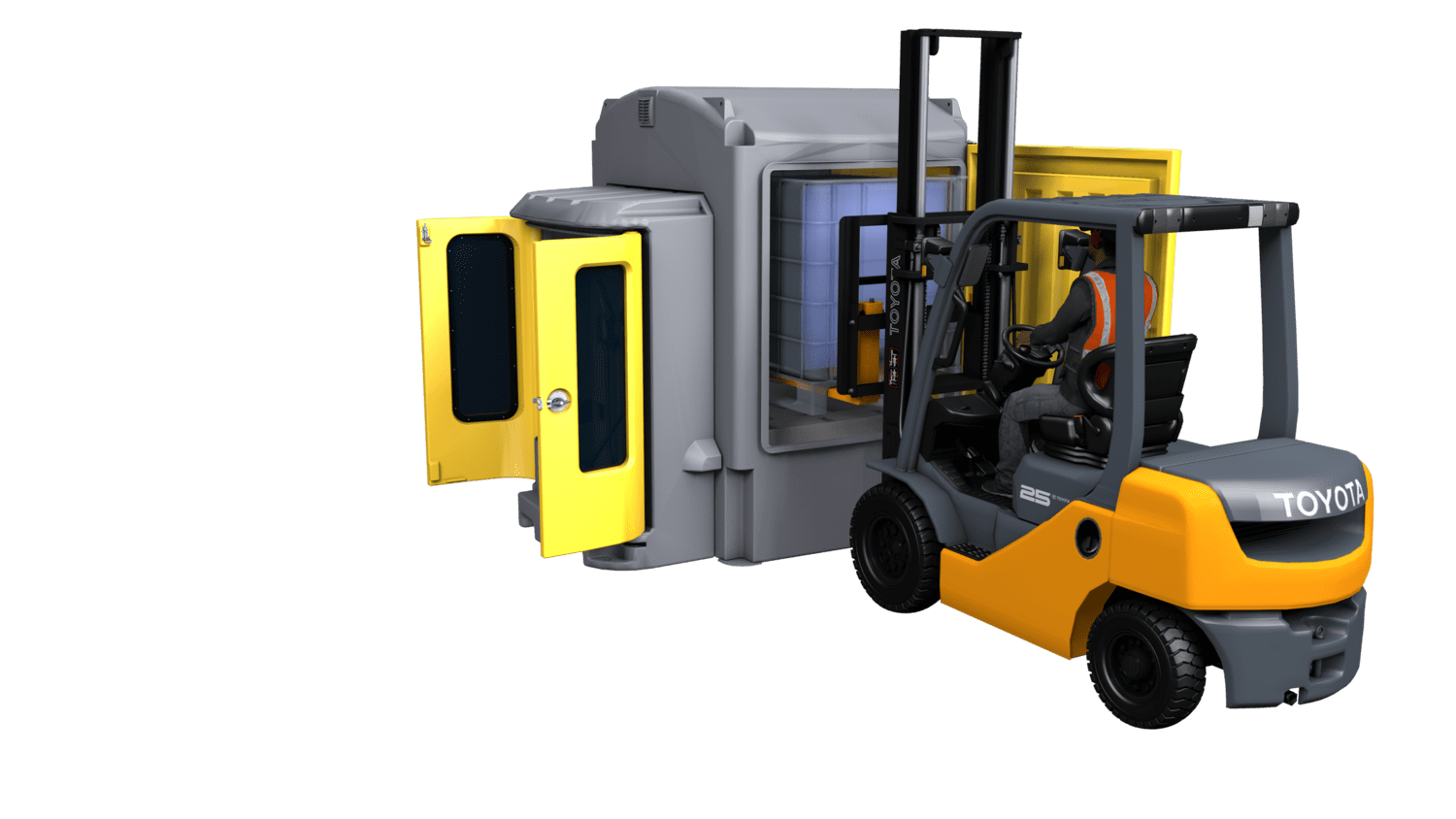

- Easy forklift loading with wide forklift access from both side and back
- Continuous chemical dosing with a 250ltr day tank
- All cabinet doors can be locked to keep system secure
- Viewing windows incorporated into the doors
- 110% bund capacity complies with AS3780
- Venting x 2 sides

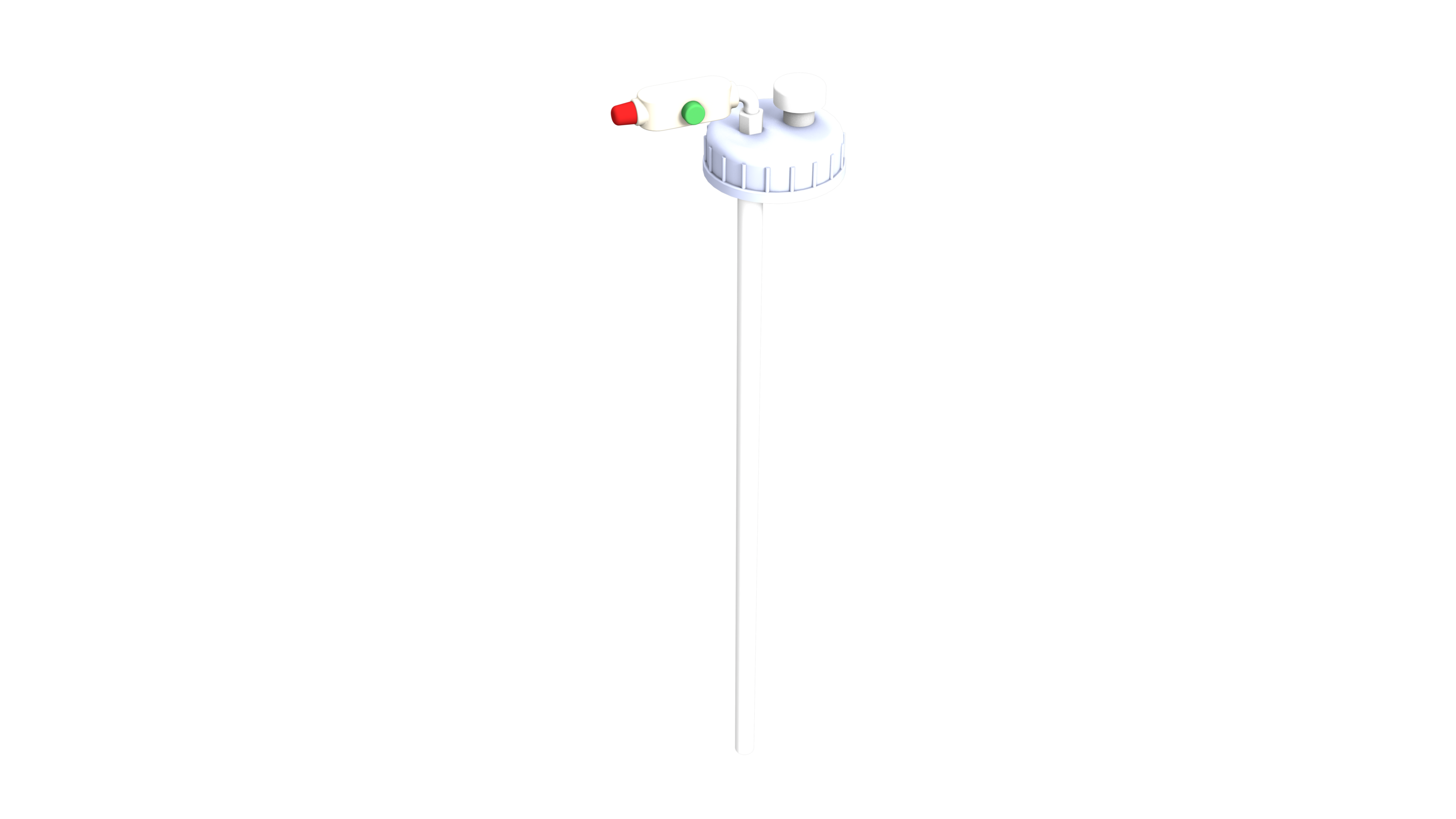

- Vent and low-level alarm available
- Chemical resistant – high grade polyethylene construction

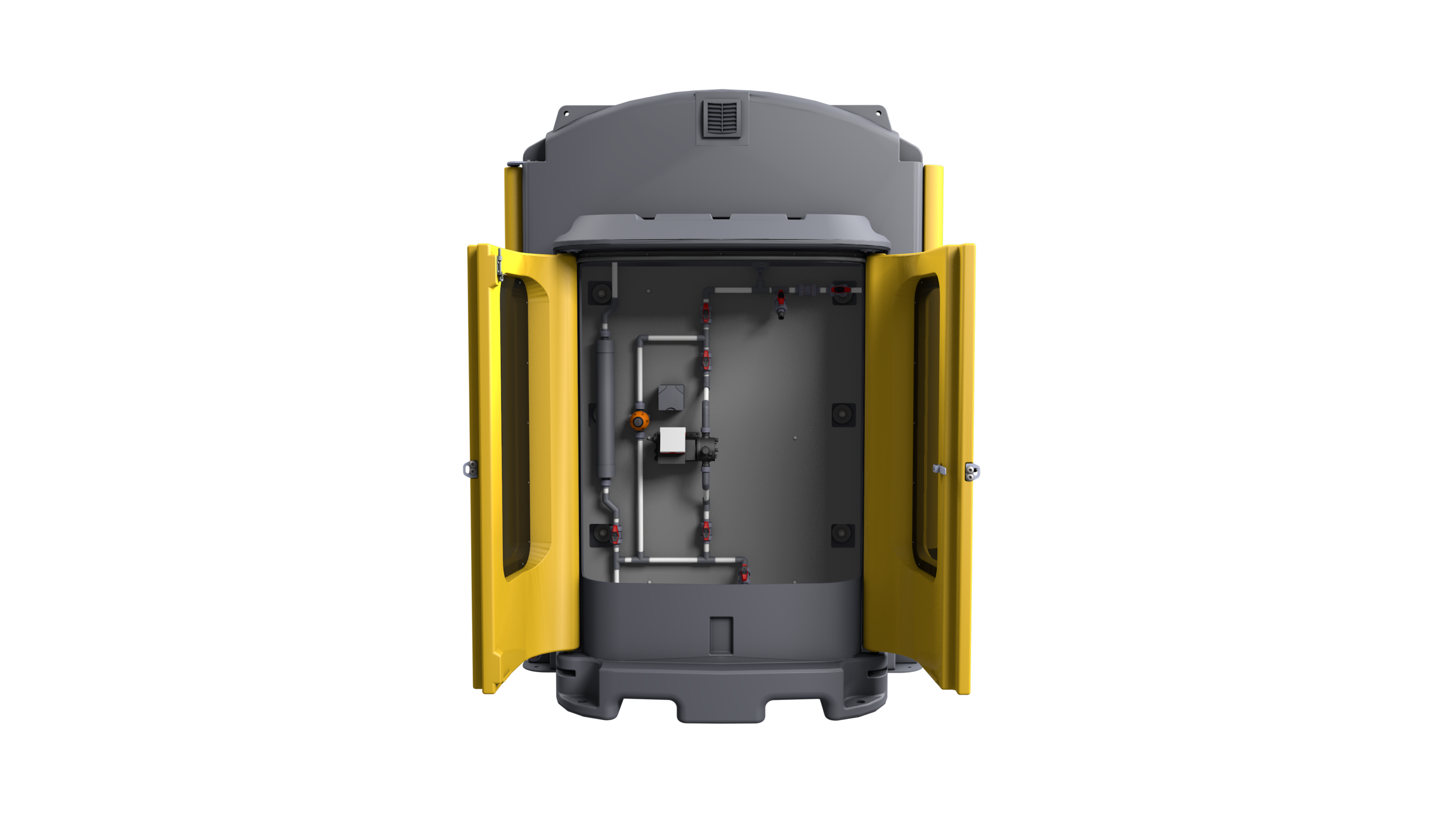

- Optional dosing pumps and systems easily incorporated into the functional front cabinet
- Optional level alarms for day tank
Contact Polymaster today about your liquid storage requirements
Image Gallery
What makes Polymaster tanks the toughest?
Self-suppoting roof design means no support poles are necessary
Extra thick corrugated walls for maximum strength
Double strength UV+ resin ensures ultimate protection against the harsh sun
One-piece construction with no joins, seams or part-lines
