Closed Head Drum
Closed Head Drum
The ideal set up for dosing chlorine in an easy-to-use system, is for a dosing pump to be mounted to a small Polymaster dosing tank. These innovative dosing tanks are a safe and effective solution for storing and dosing aggressive chemicals as our UV Stabilised Polyethylene material will not corrode giving you greater security on site.
| Code | Capacity | Diameter | Height | Bund Height | Cabinet | SG Rating | Warranty | Datasheet | Drawings | CADs |
|---|---|---|---|---|---|---|---|---|---|---|

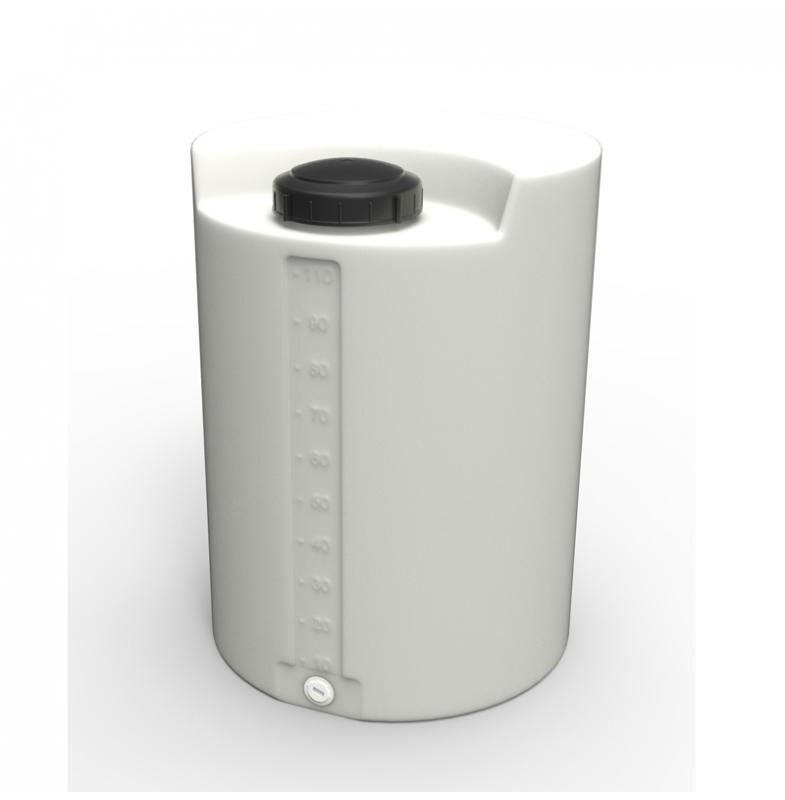

| CHD110 | 110 litres | 500mm | 675mm | 1.5 | Datasheet | Drawing | STEP | |||
| CHD110+Bund | 110 litres | 500mm | 680mm | 585mm | 1.5 | Datasheet | Drawing | STEP | ||
| CHD210 | 210 Litres | 580mm | 930mm | 1.5 | Datasheet | Drawing | STEP | |||
| CHD210+Bund | 210 Litres | 935mm | 585mm | 1.5 | Drawing Drawing | STEP |
- Improved top of tank design, remains flat and rigid
- 4x 8mm Stainless Nutserts in top as standard
- Designed for contents of up to 1.5SG
- Provision for generic stainless pump mounting bracket
- Custom outlet connections available
- Convex Base for complete drainage
- Calibrated volume indication (moulded-in permanently)
- Stackable for storage
- *Dosing Pump not included in Bunded product
Contact Polymaster today about your liquid storage requirements
What makes Polymaster tanks the toughest?
Self-suppoting roof design means no support poles are necessary
Extra thick corrugated walls for maximum strength
Double strength UV+ resin ensures ultimate protection against the harsh sun
One-piece construction with no joins, seams or part-lines
