Sweep Water Troughs

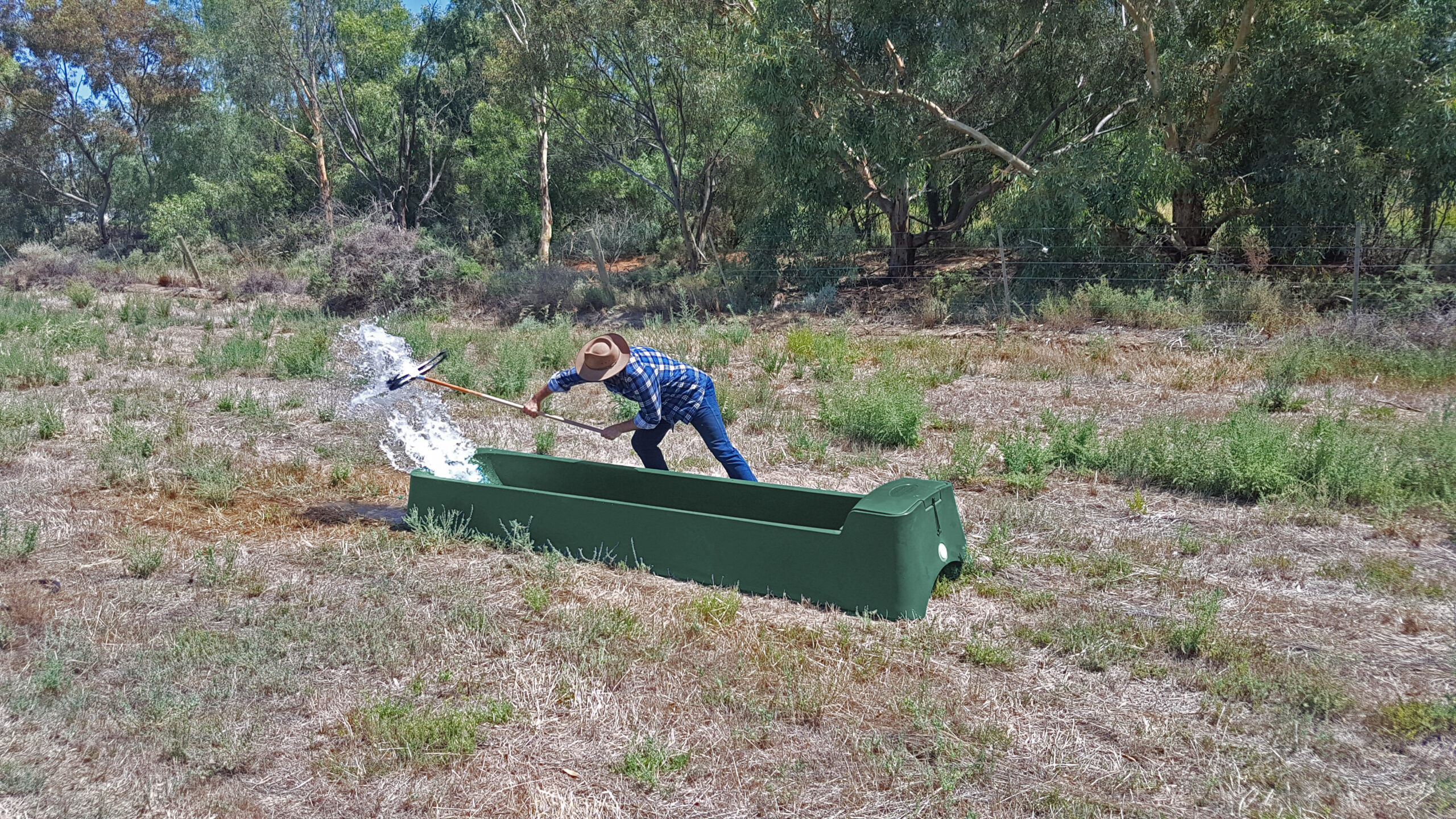

Dust settles on the water, turns to sludge on the bottom, and cleaning the trough means draining it. Polymaster sweep troughs fix that. The curved sweep-out end lets you push debris straight out with a contoured broom, without emptying the trough or wasting the water in it.
Available in 250L and 450L, ballasted for stability and built from double-skin poly that won’t rust, dent or split. Suitable for sheep and cattle.
FEATURED SWEEP TROUGH PRODUCTS
Built To Clean Out in About Five Minutes
Two water trough sizes and the brooms shaped to match them. Everything you need to keep stock water clean without draining a full trough every time.

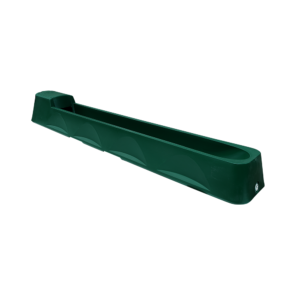

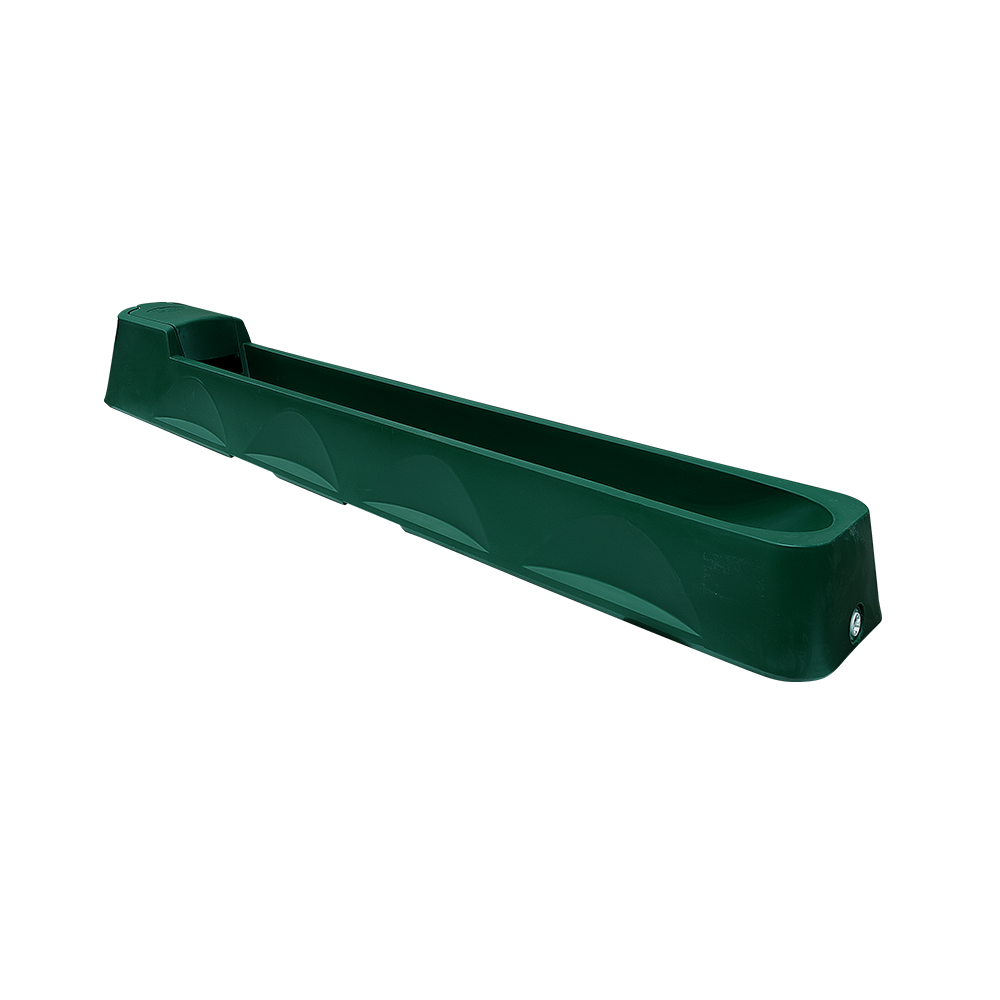

Sweep Ballast Water Trough 250L
The smaller of the two, suited to smaller mobs or tighter yards. Light enough to shift on your own, then rock solid once the ballast is filled.

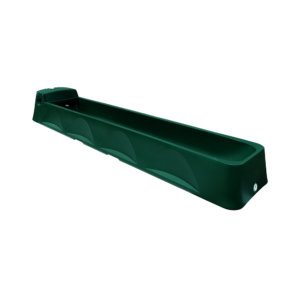

Sweep Ballast Water Trough 450L
Higher demand watering, with 25mm, 40mm or 50mm float valve options for faster refill. Can be linked back to back to double capacity.

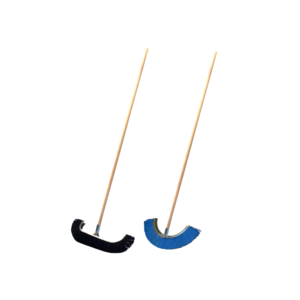

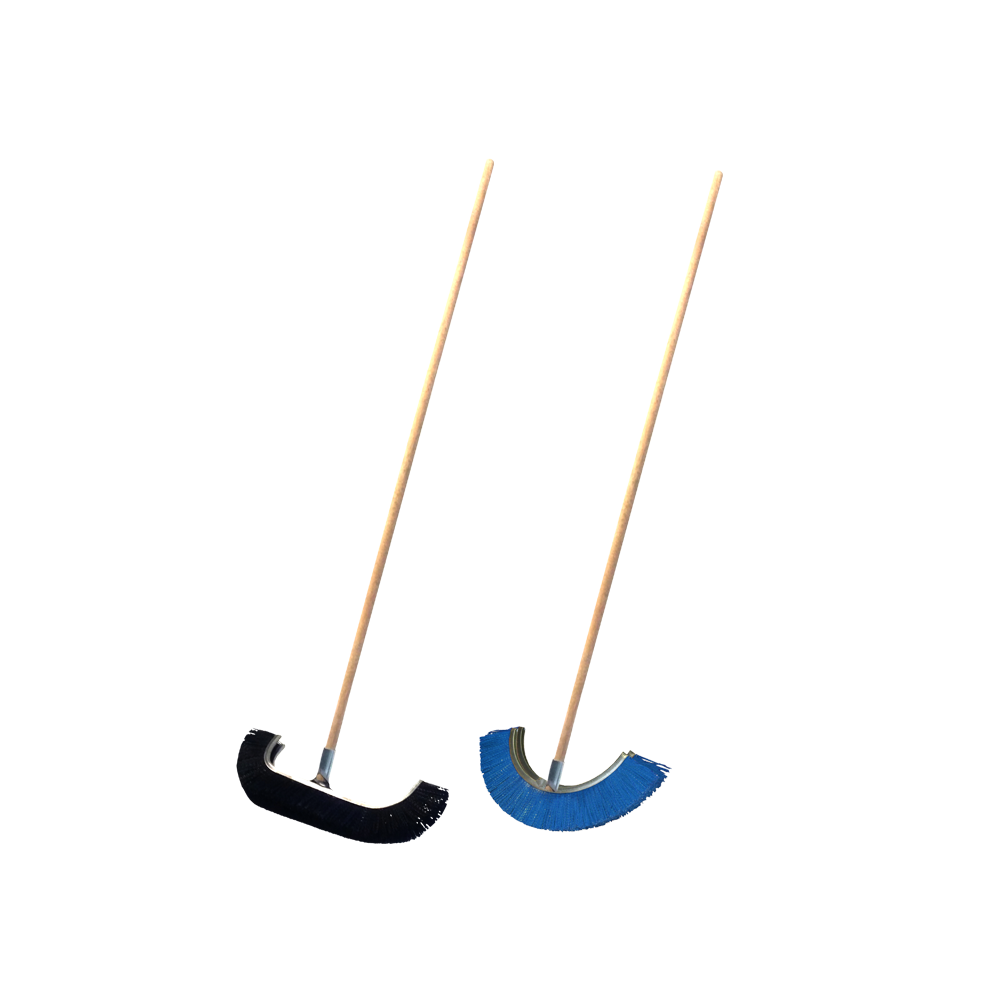

Sweep Trough Brooms
Contoured to match the trough base, so debris goes out the end rather than around the brush. STB250 for the 250L, STB450 for the 450L. Sold separately.
POLYMASTER SWEEP TROUGH SOLUTIONS
Browse the Sweep Water Trough Range
Two capacities, with float valve options on the 450L to suit your water pressure and refill speed.
| Code | Product | Capacity | Length (mm) | Width (mm) | Height (mm) | Float Cover | Broom | ||
|---|---|---|---|---|---|---|---|---|---|
 | SWP250 | 250L Sweep Trough | 250L | 3495 | 580 | 350 | SWP250FC | STB250 | |
| SWP250-40 | 250L Sweep Trough (40mm Float Valve) | 250L | 3495 | 580 | 350 | SWP250FC | STB250 | |
 | SWP450 | 450L Sweep Trough | 450L | 3495 | 772 | 375 | SWP450FC | STB450 | |
| SWP450-40 | 450L Sweep Trough (40mm Float Valve) | 450L | 3495 | 772 | 375 | SWP450FC | STB450 | |
| SWP450-50 | 450L Sweep Trough (50mm Float Valve) | 450L | 3495 | 772 | 375 | SWP450FC | STB450 |
250L Sweep Trough
SWP250
250L Sweep Trough (40mm Float Valve)
SWP250-40

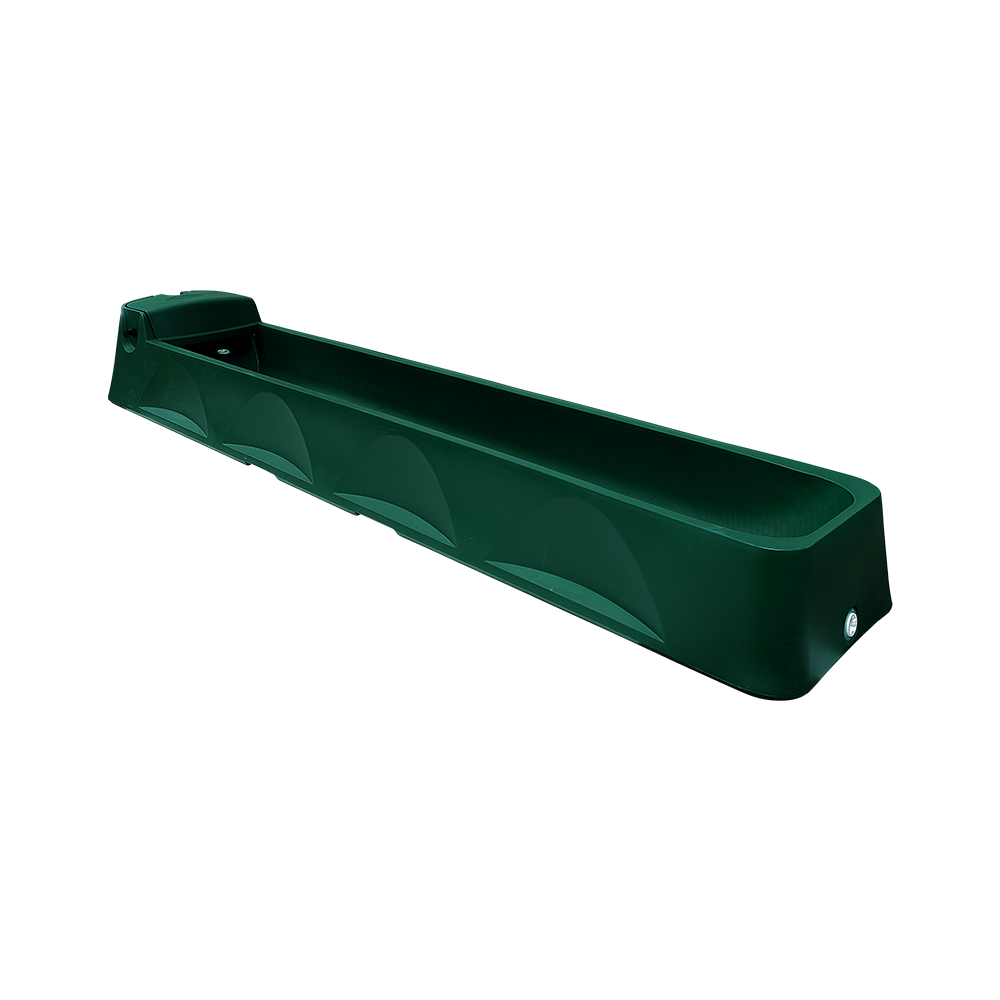

450L Sweep Trough
SWP450
450L Sweep Trough (40mm Float Valve)
SWP450-40
450L Sweep Trough (50mm Float Valve)
SWP450-50
All troughs take the AFV2 float. Brooms and float covers are sold separately.
Not sure which size suits your mob? Give us a call on 1800 062 064 and we’ll talk it through.
Why farmers choose a sweep water trough

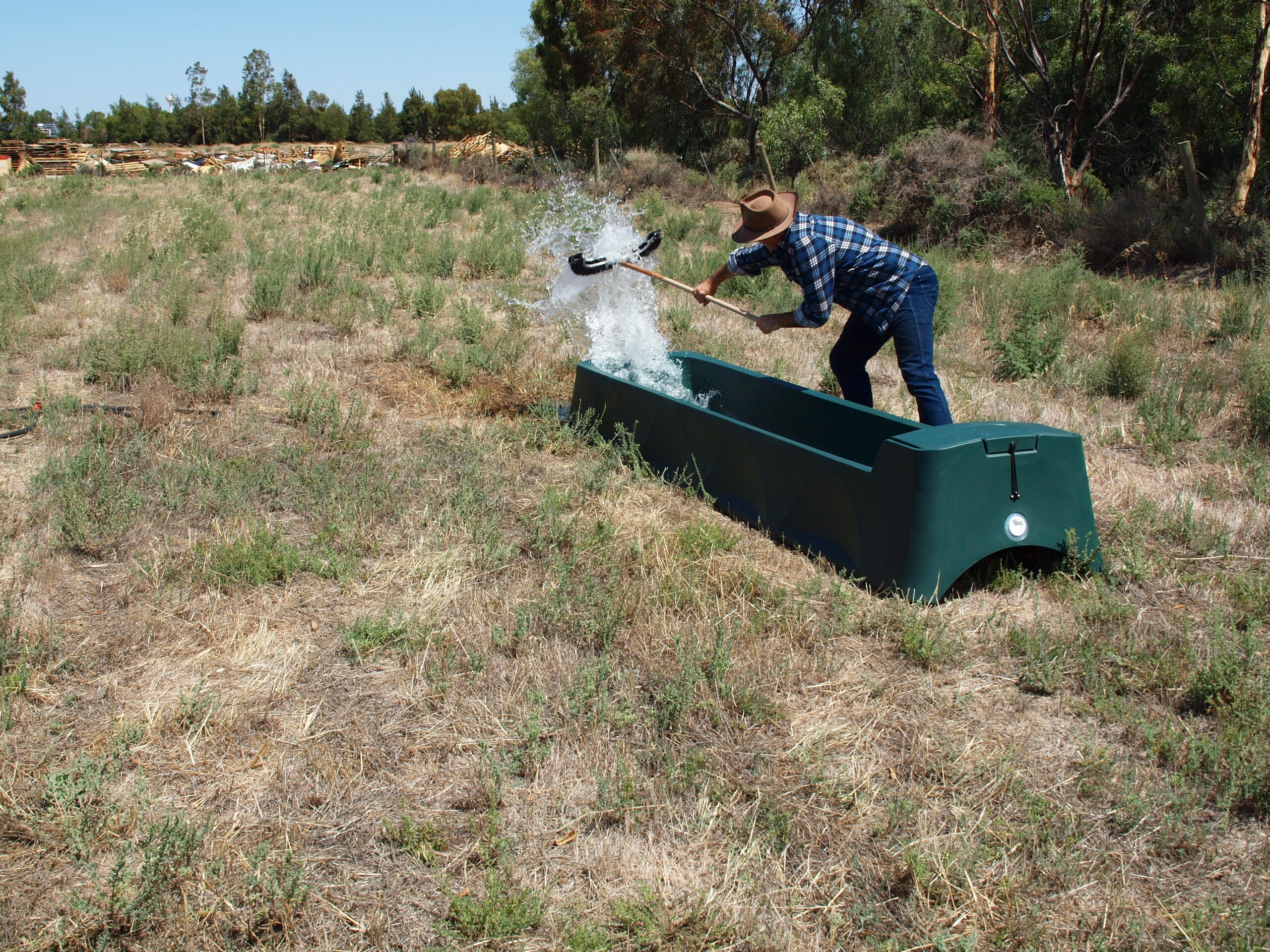

Clean it in about five minutes
The curved sweep-out base lets you push debris straight out the end with a contoured broom. No draining, no scrubbing, no wasted water, and no lifting a full trough.

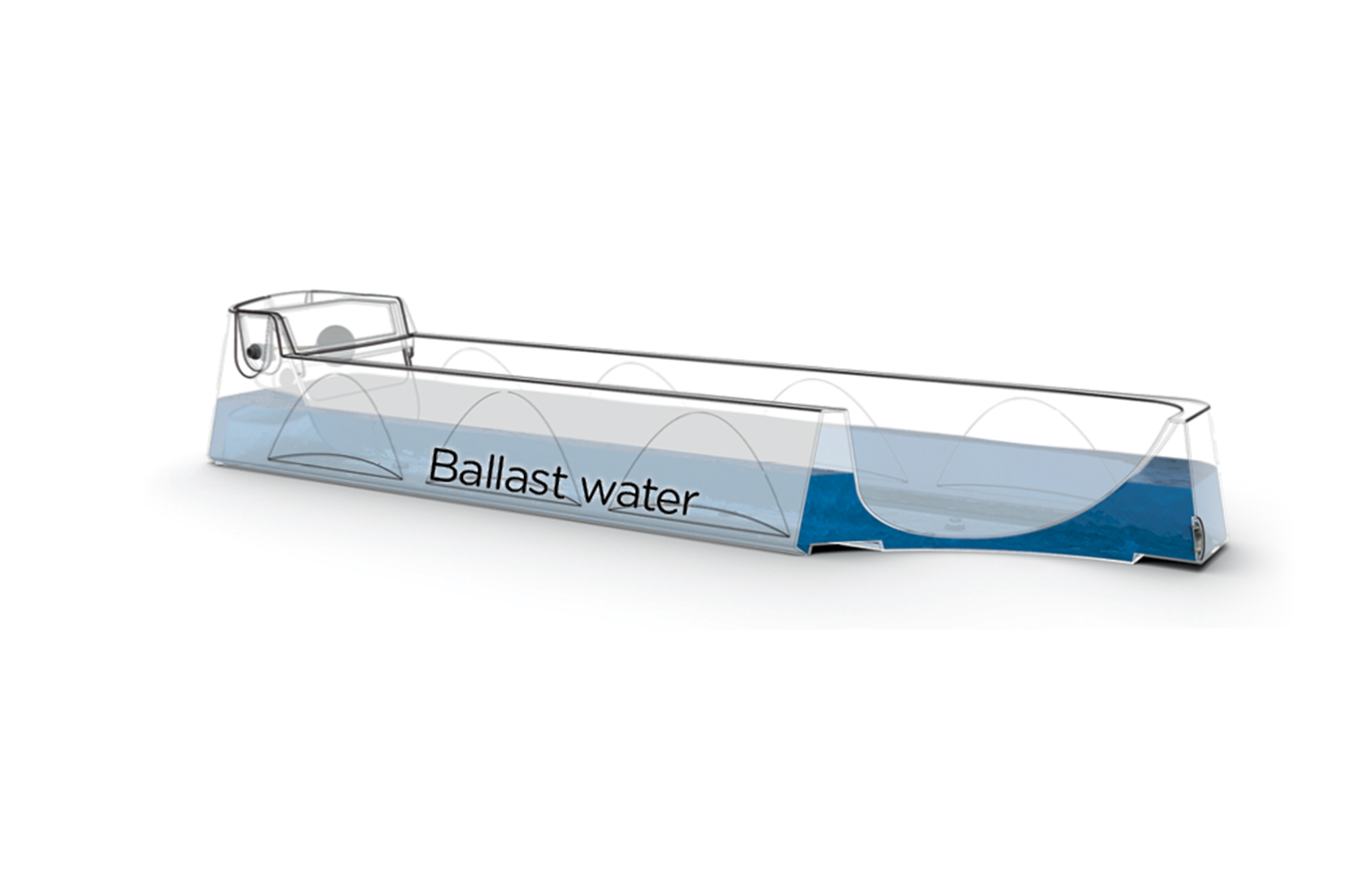

Ballast keeps it put
Fill the base with water once the trough is positioned, and it stays where you put it, even when the drinking water runs low. Ballast also helps keep the drinking water cool. The SWP250 holds around 240L of ballast, the SWP450 around 300L.
Double-skin construction
A tough double-skin mould gives extra strength and stops the trough twisting or buckling in the heat. Poly won’t rust or corrode, so it can live outside permanently.

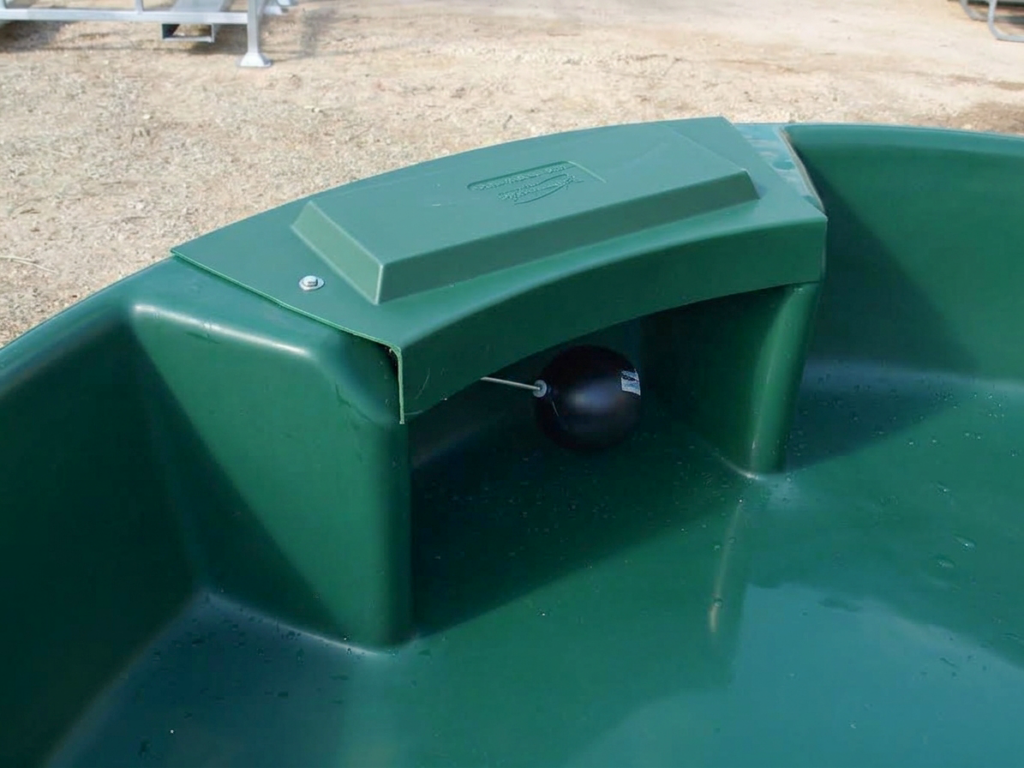

The float valve stays protected
A hinged float cover shields the valve from stock damage. Set it and forget it, and lift the cover when you need to check the float.
Certified and Australian made
Food grade polyethylene
Certified to AS/NZS 4020, the Australian standard for products in contact with drinking water.
Quality assurance
Polymaster holds ISO 9001 certification, the international standard for quality management systems.
Product certification
Certified to AS/NZS 4766:2020 for polyethylene storage tanks.

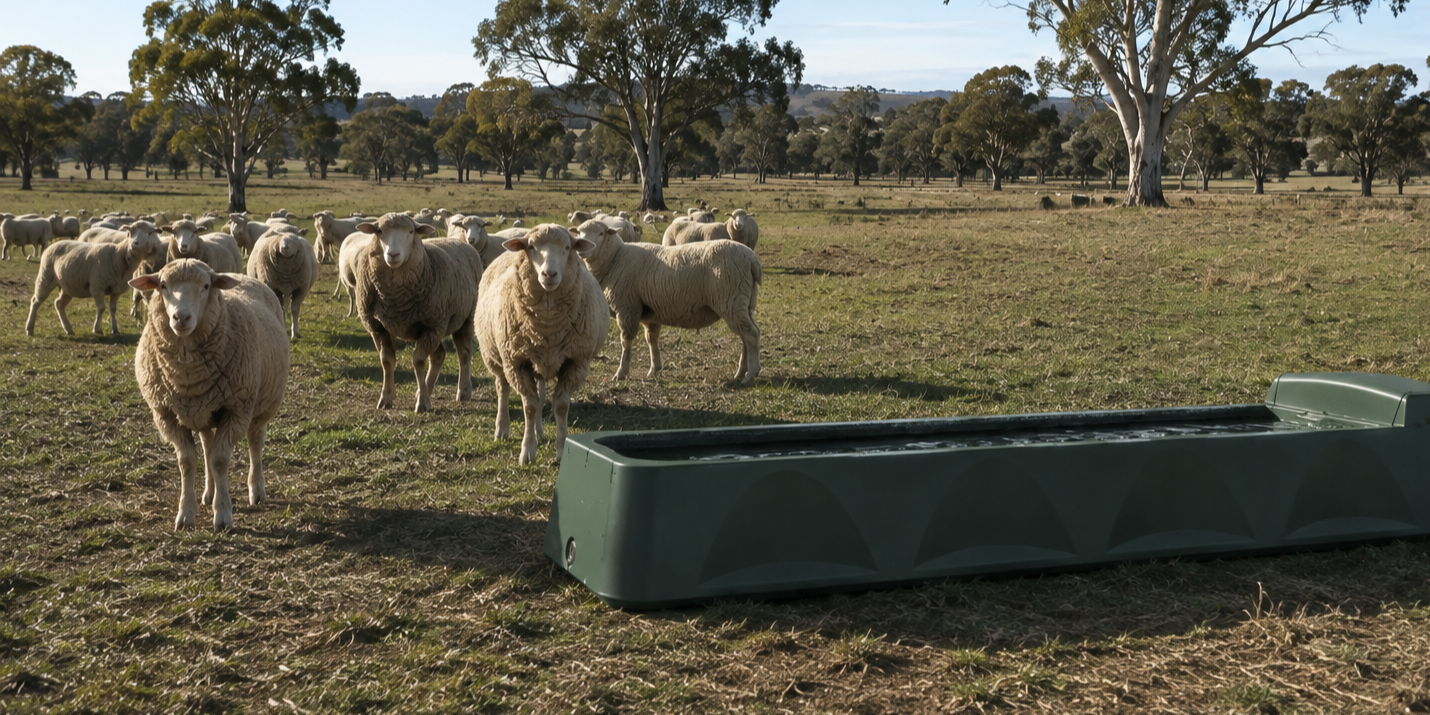

THE RANGE IN THE FIELD
A Closer Look at Polymaster Sweep Troughs
Not sure which sweep trough suits your setup?
Talk to our team. We’ll help you match the right trough size and float valve to your mob, your water pressure and your paddock layout.
FAQs
Frequently Asked Questions
Everything you need to know about Polymaster’s sweep troughs range, from maintenance to sizing, and installation.
How long does it take to clean a sweep trough?
About five minutes. The curved sweep-out base lets you push debris straight out the end without draining the trough, so there’s no emptying, refilling or waiting.
Do I need the broom, and is it included?
The contoured Sweep Trough Broom is sold separately. It’s shaped to match the trough base, which is what makes the clean-out quick, so it’s worth having. STB250 suits the 250L trough, and STB450 suits the 450L.
What’s the difference between the 250L and the 450L?
The 250L (SWP250) suits smaller mobs or tighter spaces. The 450L (SWP450) handles higher demand watering and comes with 25mm, 40mm or 50mm float valve options for faster refill. Both use the same sweep-out design and the same ballast system.
How does the ballast work?
Once the trough is in position, you fill the base with water. That weight stops stock from pushing it around, and it keeps working even when the drinking water is low. It also helps keep the drinking water cool. The 250L holds around 240L of ballast and the 450L around 300L.
Can I move the trough once it’s installed?
Empty, it’s light enough to move yourself. Filled with ballast, it stays put. To relocate it, drain the ballast through the 50mm drain plug, move it, then refill.
Are sweep troughs suitable for sheep or cattle?
Both. The sweep-out design suits dusty areas where sludge builds up in the bottom of a standard trough, which is why they’re popular with sheep producers, but they handle cattle as well.
Can I move a Supa Trough between paddocks?
The 25mm valve is standard and suits most installations. Step up to 40mm or 50mm on the 450L if you’re on lower pressure or need the trough to refill faster after a mob drinks it down.
Can two troughs be linked together?
The 450L can be linked back to back to double capacity where you need more water at a single point.
