Enclosed IBC Bund

ENIBCB

Enclosed IBC Bund

ENIBCB

All Weather Polyethylene IBC Storage & Dispensing

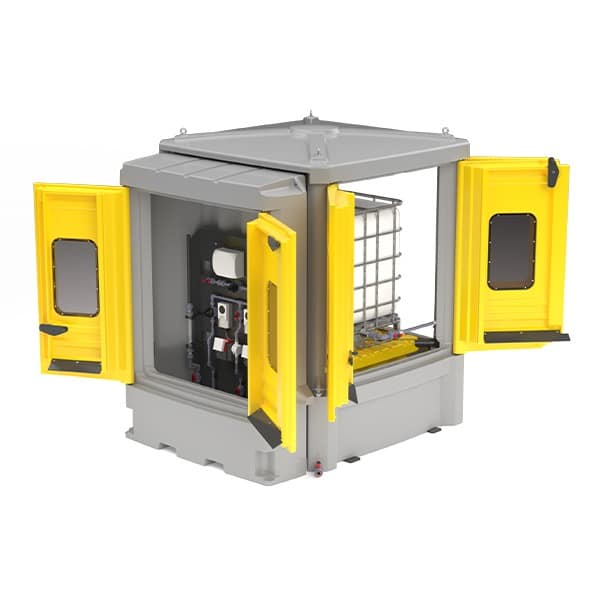

Polymaster’s unique Enclosed IBC Bund solves many of the problems associated with IBC storage and chemical/fluid decanting in a weather-resistant, purpose-built enclosure.

Constructed from high-grade polyethylene material, the Polymaster Enclosed IBC Bund allows for easy forklift movement of IBC’s in/out, with simple connection made to a 250 litre day tank and eliminating OH&S issues associated with IBC handling.

Prevent OH&S incidents with easy and safe connection to the IBC transfer hose. No residual chemical spills.

Enquire about this product
Description Code Capacity L x W Height Max. SG Rating Material Datasheet Drawings CADs
Enclosed IBC Bund - LH Configuration ENIBCB-LH 1250L 1690 x 1905mm 2445mm 2 PE Datasheet Drawing STEP
Enclosed IBC Bund - RH Configuration ENIBCB-RH 1250L 1690 x 1905mm 2445mm 2 PE Datasheet Drawing STEP
Enclosed IBC Bund - LH Configuration with Day Tank, Hoses & Vent Tube ENIBCB-LH-DY 1250L 1690 x 1905mm 2445mm 2 PE Datasheet Drawing STEP
Enclosed IBC Bund - LH Configuration with Day Tank, Hoses & Vent - Aggressive Chemicals ENIBCB-LH-DY-AGC 1250L 1690 x 1905mm 2445mm 2 PE Datasheet Drawing STEP
Enclosed IBC Bund - RH Configuration with Day Tank, Hoses & Vent ENIBCB-RH-DY 1250L 1690 x 1905mm 2445mm 2 PE Datasheet Drawing STEP
Enclosed IBC Bund - RH Configuration with Day Tank, Hoses & Vent - Aggressive Chemicals ENIBCB-RH-DY-AGC 1250L 1690 x 1905mm 2445mm 2 PE Datasheet Drawing STEP
Enclosed IBC Bund - LH Configuration with Cabinet ENIBCB-LH-C 1250L 2385 X 1905mm 2445mm 2 PE Datasheet Drawing STEP
Enclosed IBC Bund - RH Configuration with Cabinet ENIBCB-RH-C 1250L 2385 X 1905mm 2445mm 2 PE Datasheet Drawing STEP
Enclosed IBC Bund - LH Configuration with Cabinet, Day Tank, Hoses & Vent ENIBCB-LH-C-DY 1250L 2385 X 1905mm 2445mm 2 PE Datasheet Drawing STEP
Enclosed IBC Bund - LH Configuration with Cabinet, Day Tank, Hoses & Vent - Aggressive Chemicals ENIBCB-LH-C-DY-AGC 1250L 2385 X 1905mm 2445mm 2 PE Datasheet Drawing STEP
Enclosed IBC Bund - RH Configuration with Cabinet, Day Tank, Hoses & Vent ENIBCB-RH-C-DY 1250L 2385 X 1905mm 2445mm 2 PE Datasheet Drawing STEP
Enclosed IBC Bund - RH Configuration with Cabinet, Day Tank, Hoses & Vent - Aggressive Chemicals ENIBCB-RH-C-DY-AGC 1250L 2385 X 1905mm 2445mm 2 PE Datasheet Drawing STEP
Enclosed IBC Bund - LH Configuration with Cabinet, Day Tank, Hoses, Vent and Pump Dispensing System ENIBCB-LH-PUMP 1250L 2385 X 1905mm 2445mm 2 PE Datasheet Drawing STEP
Enclosed IBC Bund - RH Configuration with Cabinet, Day Tank, Hoses, Vent and Pump Dispensing System ENIBCB-RH-PUMP 1250L 2385 X 1905mm 2445mm 2 PE Datasheet Drawing STEP

The Polymaster Enclosed IBC Bund solves many issues with the storage and dispensing of chemicals from IBCs, including:

  • Rainwater resistant doors holds chemical spray inside and prevents rainwater ingress
  • Easy forklift loading with wide forklift access from both side and back
  • Continuous chemical dosing with a 250ltr day tank
  • All cabinet doors can be locked to keep system secure
  • Viewing windows incorporated into the doors
  • 110% bund capacity complies with AS3780
  • Venting x 2 sides
  • Vent and low-level alarm available
  • Chemical resistant – high grade polyethylene construction
  • Optional dosing pumps and systems easily incorporated into the functional front cabinet
  • Optional level alarms for day tank
Can Polymaster’s IBC Storage Bund accommodate a customized dosing system?

Yes, the front cabinet can either accommodate a fully customized dosing system or an off-the-shelf dispensing kit suggested by Polymaster that suits chemicals.

Does Polymaster’s IBC Storage bund meet safety standards?

Yes, Polymaster’s IBC storage bund exceeds AS3780-2008, The Storage and Handling of Corrosive Substances, bunding requirements of 110%

How can operators access the IBC within the IBC Storage Bund?

Operators have free and easy access via outward swing doors. Each door has clear viewing panels so that an operator can see inside without putting themselves at risk in the event of a spill.

How do I install my IBC into the IBC storage Cabinet?

Polymaster’s Enclosed IBC Bund Storage features wide-opening doors that allow an IBC to be easily forklifted into position from either the side or the back. Extra clearance on all sides of the entrance is beneficial for exterior storage where forklifts may operate on uneven terrain.

How many dosing pumps can you fit into the IBC Storage Bund?

It really depends on the pump size you have in mind. For example, if the pumps were 30lph (Grundfos DDAs), three would be the maximum.

Is there an alarm to indicate when the day tank is running low in the ibc storage cabinet?

Yes, the mounted audible and visual low-level alarm can be viewed through viewing panels.

The IBC storage container (Enclosed IBC) features a 250L day tank. Is the day tank and IBC connection always open, and does this mean that the IBC will continually feed the day tank until the IBC is empty?

Yes this is correct it will gravity fill the day tank until empty. There is a level switch on the day tank that will switch when the day tank is say at 200 litres and another can be put in place. Alternate we offer pressure transducers for level indication also.

What additional features does the Enclosed IBC Bund provide for IBC storage?

It includes the following;

  • A built-in vent to expel gases.
  • A 250ltr day tank for continuous dosing if incorporated into an in-line process.
  • Rainwater resistant doors holds chemical spray inside and prevents rainwater ingress
  • Lockable cabinet
  • Viewing windows incorporated into the doors
  • 110% bund capacity complies with AS3780
  • Venting x 2 sides
  • Vent and low-level alarm available
  • Chemical resistant – high grade polyethylene construction
  • Optional dosing pumps and systems easily incorporated into the functional front cabinet
  • Optional level alarms for day tank



What is the best way to store an IBC safely?

Polymaster has an enclosed IBC Storage Bund that is a weatherproof storage container that contain an IBC within the bund.  It is designed to prevent rain from entering the unit and in the event of an IBC rupture, the unit would contain the entire contents within itself.

What is the estimated cost for an IBC Storage Bund (ENCIB) unit with a cabinet?

This depends on if you require dosing pipework for one or two pumps, or if you need just the cabinet. Contact Polymaster on 1300 062 064 to get a quote for your site.
