Citric Acid Storage
Citric Acid, with the chemical formula C₆H₈O₇, is a weak organic acid used in water treatment, clean-in-place systems and pH control. Polymaster supplies storage and dosing solutions suited to its handling requirements.
OVERVIEW
What is Citric Acid?
Citric Acid (C6H8O7) is a weak organic acid commonly used in various industrial applications, including food and beverage production, pharmaceuticals, and cleaning products. Polymaster offers supply tanks designed to safely store Citric Acid for various industrial needs.
What material is compatible with Citric Acid storage?
1.5SG with Hexene PE, Sealed
Polymaster’s tanks with 1.5SG hexene PE are designed for superior chemical storage solutions. Hexene PE provides enhanced strength and durability compared to standard PE, ensuring the tanks can withstand harsh chemical environments. The sealed design of these tanks guarantees a secure containment of chemicals, preventing any risk of leaks or contamination. Each tank undergoes rigorous QA processes, including hydro testing, to confirm they meet the highest standards of safety and performance. Polymaster’s 1.5SG hexene PE tanks are ideal for industries requiring reliable and robust chemical storage solutions.
CHEMICAL DOSING SOLUTIONS
Chemical Dosing Solutions
Pre-engineered Dosing Systems
Our pre-engineered dosing systems are designed for precise and efficient dosing of Citric Acid. These systems are pre-engineered to offer a dosing range which is off-the-shelf and suitable across a wide range of industries. To configure a pre-engineered dosing system suitable for your application, this range offers:
Key Features:
- Pump Arrangements: Duty or Duty/Standby pump arrangements.
- Pump Options: 7.5 LPH @ 16 bar up to 200 LPH @ 4 bar – Grundfos DDA Dosing
- Pumps.
Pipework and Valves: +GF+ sch80 pipework and valves. - Cables and Junction Box: Control Cables and Junction Box.

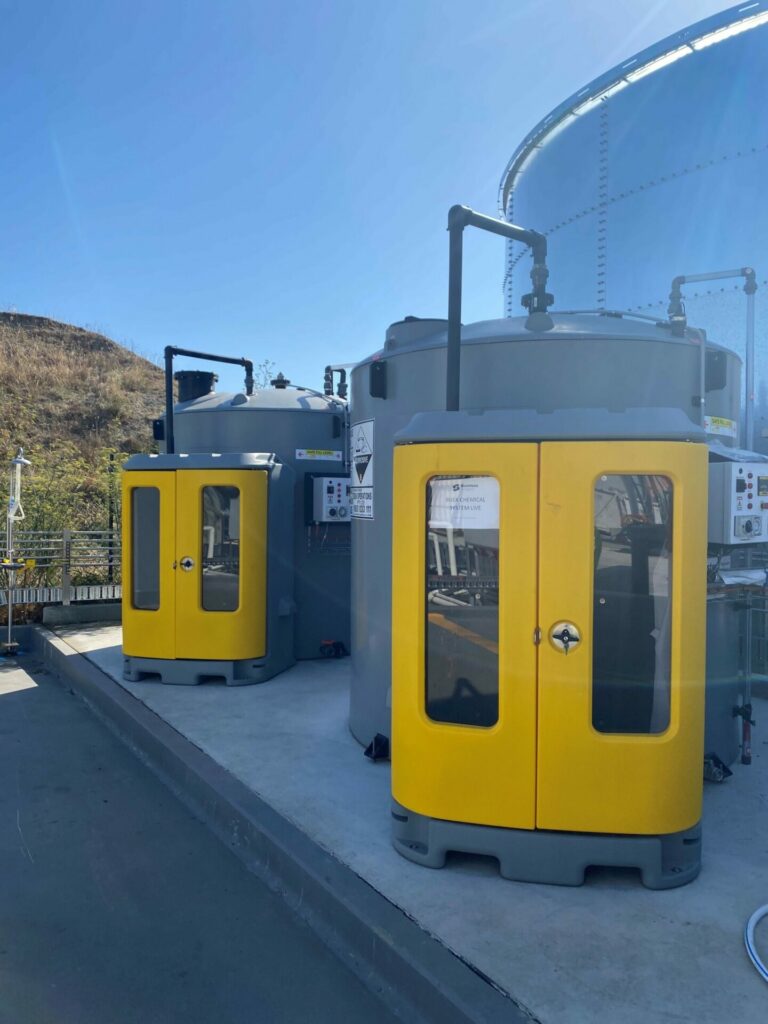

- Mounting: These dosing systems are typically mounted inside the Double Door Cabinet and can be integrated to the side of a storage tank or standalone.
- Documentation: Detailed drawings, datasheets and step files available for these systems.
View Product
Custom Dosing Systems
Our custom dosing systems are tailored to meet the unique requirements of your specific applications. Polymaster builds custom dosing systems to match client-supplied P&ID’s and we follow the end-users’ specifications, such as a Water Utilities technical specification.
Key Features:
- Customised Systems: Systems built to your specifications.
- Precision Dosing: Advanced pumps and controls for accurate chemical delivery.
- Integration: Seamless integration with your current processes and systems.
- Safety and Compliance: Designed to meet all relevant standards and end-user specifications.
- Large Systems: We can build large systems for large-scale applications.
View Product
CHEMICAL SOLUTIONS
Tanks for Citric Acid Storage
Polymaster’s Self-Bunded range is the ultimate storage solution for citric acid. This range incorporates the bund with the storage tank, providing a bund capacity of 110% of the internal storage tank. In the unlikely event of a leak, this design prevents chemicals from coming into contact with the environment and personnel. Polymaster’s chemical tanks are not rainwater tanks and follow strict QA processes, such as hydro testing each tank to ensure they are 100% leak-proof.

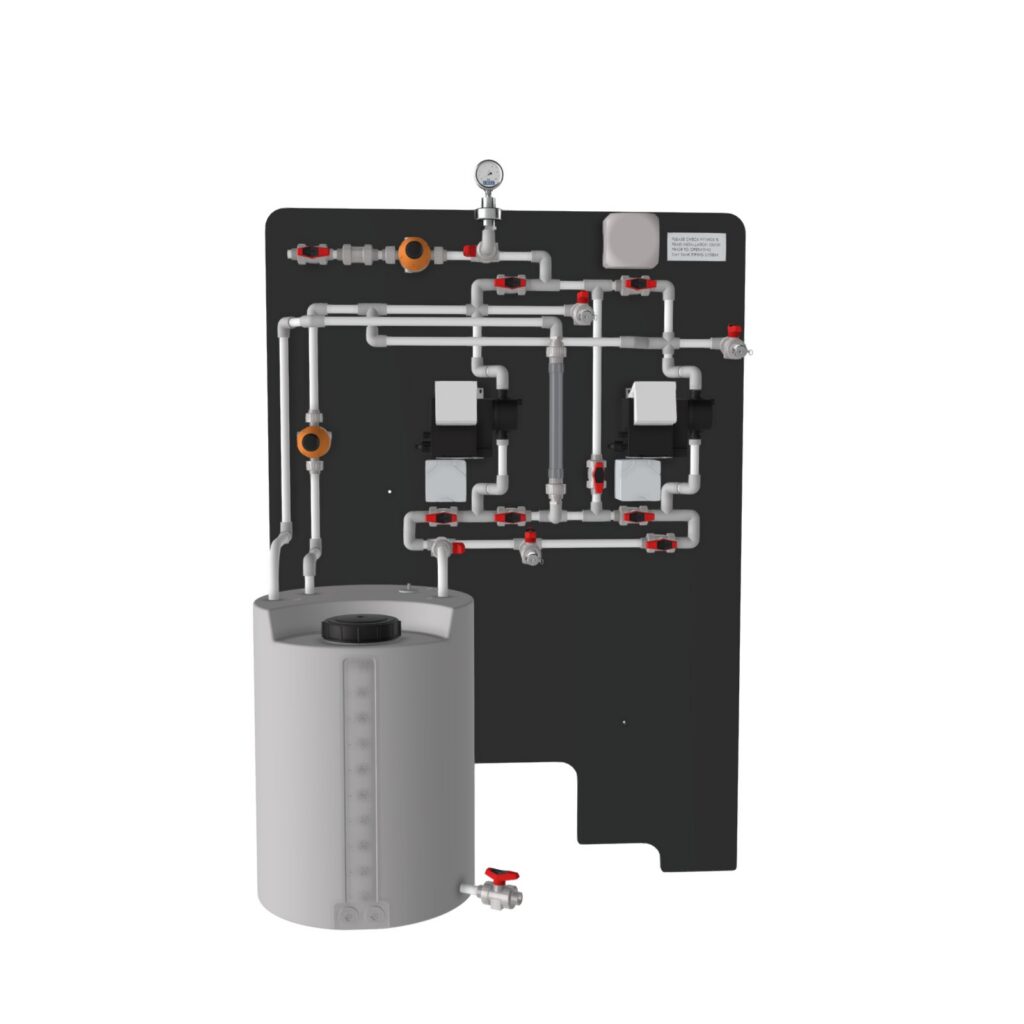

110L Chemical Dosing Skid
110L Chemical Dosing Skid
The 110ltr Dosing Skid is designed for small or remote treatment plants. This unit is setup inside the Polymaster the Double Door Cabinet, making it portable and versatile for different applications.
220L Chemical Dosing Skid
220L Chemical Dosing Skid
The 220L Dosing Skid offers extra capacity over the 110L unit while retaining the same compact, easy-to-manage footprint. It’s suited to applications with slightly higher dosing demand, without the space or handling requirements of a full-scale storage tank.
Enclosed IBC Bund
Enclosed IBC Bund
All Weather Polyethylene IBC Storage & Dispensing.
Polymaster’s unique Enclosed IBC Bund solves many of the problems associated with IBC storage and chemical/fluid decanting in a weather-resistant, purpose-built enclosure.
1,500L Bunded Chemical Tank
1,500L Bunded Chemical Tank
Polymaster’s smallest self-bunded tank, built for sites with tighter footprints or lower-volume chemical use. At 1170mm diameter it’s the most compact in the range, still delivering a fully engineered tank-within-a-tank design with 110% bund capacity, a 25-year design life, and compatibility across 1,965+ chemicals.
2,300L Bunded Chemical Tank
2,300L Bunded Chemical Tank
A step up from the 1,500L, the 2,300L self-bunded tank is the first size in the range offered with a double-door cabinet option, giving room to house dosing equipment alongside storage. Same 110% bund capacity and 25-year design life, sized for operations that need a bit more headroom without going bulk.
3,300L Bunded Chemical Tank
3,300L Bunded Chemical Tank
The 3,300L sits comfortably in the mid-range for self-bunded storage, still light enough to be despatched on a pallet and unloaded by forklift or crane with spreader bar. It combines the same tank-within-a-tank containment and 25-year design life as the rest of the range, in a footprint that suits growing operations.
5,000L Bunded Chemical Tank
5,000L Bunded Chemical Tank
At 2200mm diameter, the 5,000L strikes a balance between capacity and handling ease — still within the pallet/forklift-friendly size bracket, but with meaningfully more storage than the smaller tanks. Fully self-bunded to 110% capacity, it’s a common choice where moderate chemical volumes need dependable, low-fuss containment.
10,000L Bunded Chemical Tank
10,000L Bunded Chemical Tank
The 10,000L is the largest self-bunded tank still handled via pallet, forklift, or crane with spreader bar — the practical ceiling before larger units require lifting-plan-specified equipment. It offers substantially more storage while keeping site logistics simple, backed by the same 110% bund capacity and 25-year design life.
13,000L Bunded Chemical Tank
13,000L Bunded Chemical Tank
Moving into the range’s larger tanks, the 13,000L is the first size requiring a dedicated lifting plan for installation, and the first offered in a 1.75 SG rating alongside the standard 1.5 and 2 SG options — giving more flexibility for denser chemicals at higher-volume sites.
21,000L Bunded Chemical Tank
21,000L Bunded Chemical Tank
Built for high-volume chemical storage, the 21,000L offers the same 1.5, 1.75 and 2 SG options as the 13,000L in a significantly larger footprint (3570mm diameter). Installation follows the 13KL–30KL lifting plan, reflecting the scale of equipment needed to safely place a tank this size.
30,000L Bunded Chemical Tank
30,000L Bunded Chemical Tank
The largest tank in Polymaster’s self-bunded range, the 30,000L is built for sites with substantial bulk chemical storage needs. At 3880mm diameter, it carries the same engineering standards as every size below it — 110% bund capacity, 25-year design life — scaled up for maximum single-tank capacity.
HIGHEST QUALITY, CERTIFIED PRODUCTS
Our Tanks are manufactured to the highest Quality & Standards
Quality Assurance
Polymaster is certified for the international standard for quality management ISO9001
Food Grade
Food-grade polyethylene, certified to AS/NZS4020, the Australian standard for drinking water
Product Certification
Manufactured to AS/NZS 4766:2006 for guaranteed peace of mind.
Chemical Grade
Polymaster’s specially formulated PE material grades are certified to safely contain over 2,000 chemicals.
ACCESSORIES
Accessories for Citric Acid Storage
Accessories give you the ability to decanter, store, mix and dispense with ease. We ensure you have a safe and effective solution for storing and dosing aggressive chemicals.

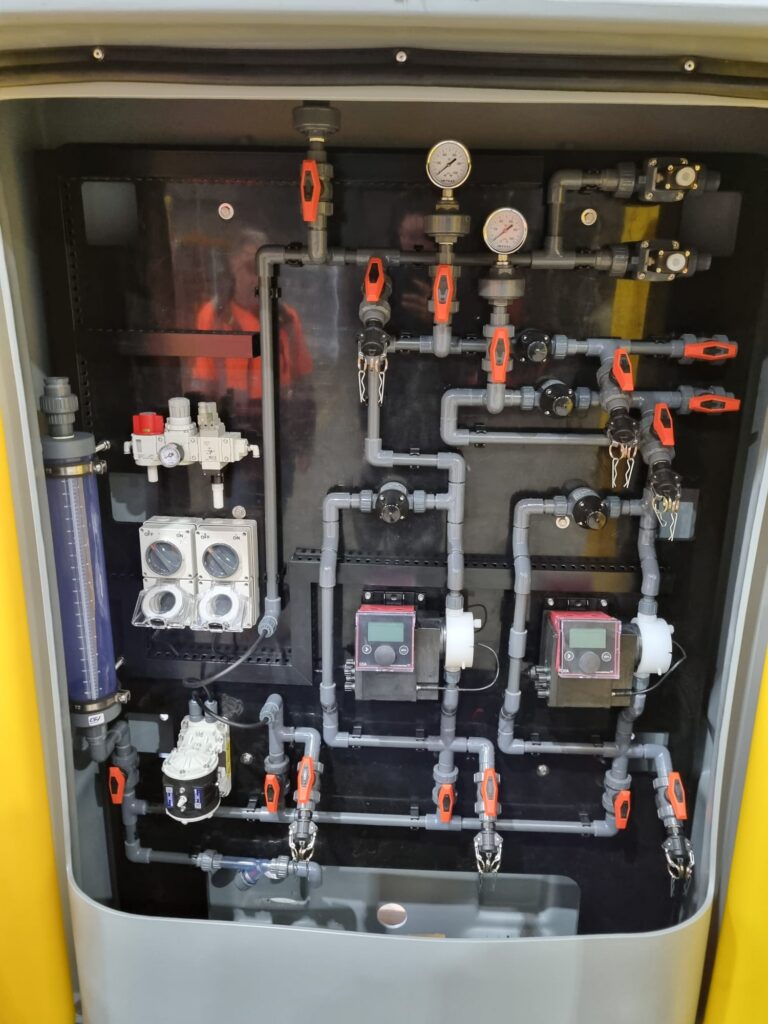

Dosing Skids
Polymaster provides dosing pipework and skids that assist in controlling the flow rate of Citric Acid used in various treatment setups. These systems ensure precise and efficient chemical dosing.
View Product

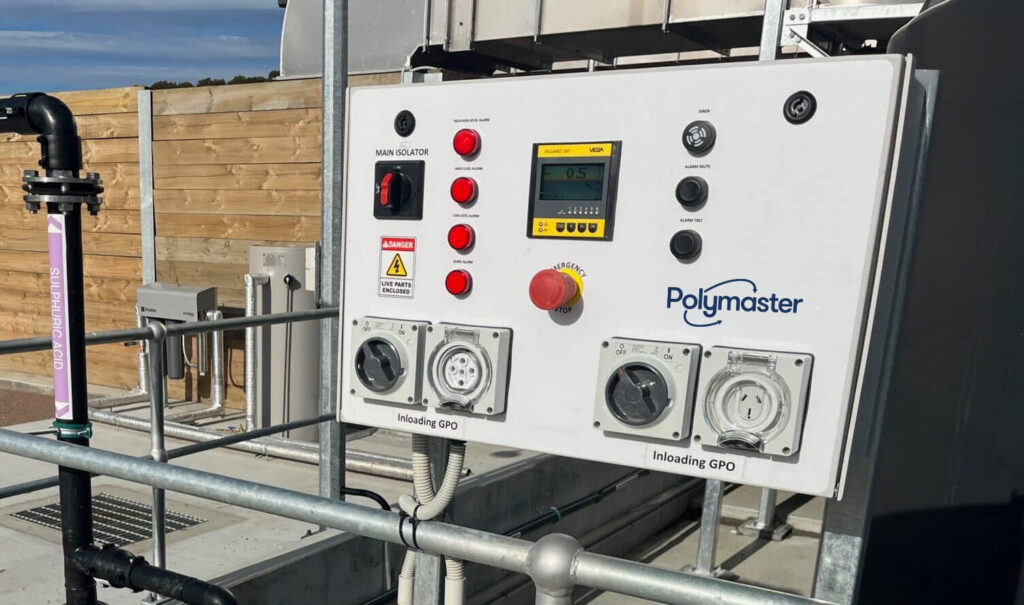

Chemical Filling Stations
Polymaster’s chemical filling stations offer a safe and efficient solution for unloading Citric Acid. Designed for ease of use, these panels ensure secure and controlled chemical transfer.
View Product

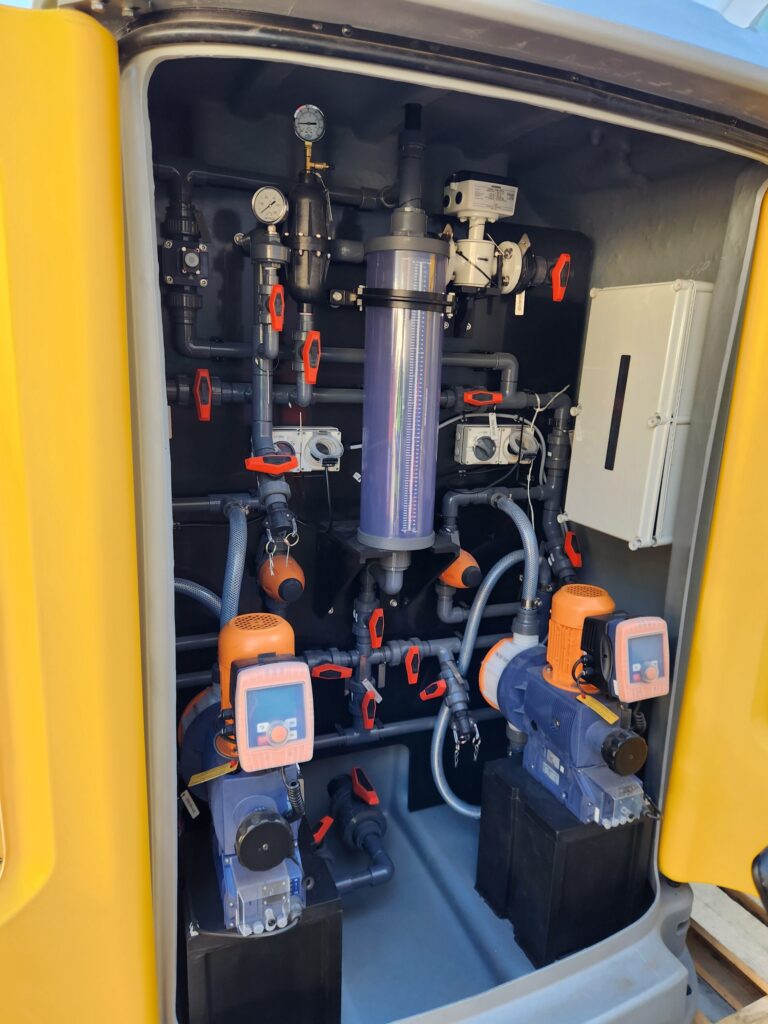

Cabinets
Chemical Dosing Systems – made easy at Polymaster for all applications, with flexible dosing options available ranging from a standalone cabinet to a complete package. These cabinets ensure safe and organised storage of Citric Acid dosing equipment.
View Product
CASE STUDIES

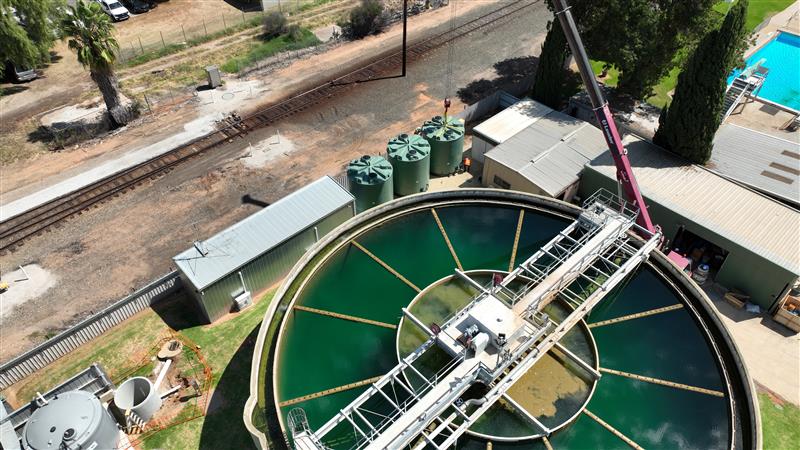

Upgrading the Dungong Wastewater Treatment Plant
Find out how Polymaster was involved in the completion of a $28 million upgrade project to improve Dungong’s water quality.
- Industry: Waste Water Treatment
- Application: Clean In Place
- Product Used: Medium Self Bunded Chemical Tank
Applications
What are the applications for Citric Acid?
Citric Acid (C₆H₈O₇) is a versatile chemical with a wide range of applications across various industries.
Here are some of its primary uses:
Water Treatment
Citric acid is used to remove limescale from boilers and evaporators and can be used to soften the water. This process helps maintain the efficiency and longevity of the equipment by preventing scale buildup and ensuring smooth operation.
Clean In Place
Citric acid is used in Clean In Place (CIP) systems, which are methods of cleaning the interior surfaces of pipes, vessels, and equipment without disassembly. Its properties make it effective for removing mineral deposits and other impurities, making the cleaning process more efficient and thorough.
FAQs
Frequently Asked Questions
Got a question about storing or dosing Citric Acid? Here’s what our customers ask most — from best-practice storage to safe handling and what to avoid mixing it with.
What is the best way to store Citric Acid?
Citric Acid is one of the weaker organic acids, but it is still a corrosive chemical that requires special handling and storage. It is important that it is stored within a container that is resistant to corrosive chemicals. This means within a tank or container that is built for the purpose of holding aggressive chemicals.
Best practices for storing Citric Acid
Store Citric Acid at room temperature in a dry and well-ventilated area away from direct sunlight.
Use containers made of compatible materials, such as our 7032 grade hexene 1.5SG to store Citric Acid.
Store Citric Acid separately from other chemicals, particularly bases, which can react with it and cause dangerous reactions.
Ensure that Citric Acid containers are tightly sealed and labelled with the proper hazard warnings.
Regularly inspect and check your tank for any signs of damage or wear that may occur and get them repaired immediately.
What not to store with Citric Acid
Other alkaline-based chemicals and oxidizing agents may release toxic Chlorine gas if mixed.
Aluminium Chlorohydrate may slowly corrode Iron, Brass, Copper, Aluminium, Mild Steel and Stainless Steel
Chemical Storage & Handling
When it comes to the storage and handling of Citric Acid it is important that it is handled safely, and that everyone on-site is kept safe. Here are a few guidelines to follow to keep your workplace safe:
Store the chemical in its own designated area, away from other chemicals and direct sunlight. If Citric Acid is exposed to direct sunlight, it can degrade quickly causing the chemical to lose its effectiveness.
With any type of corrosive chemical using the appropriate personal protective equipment (PPE) such as gloves, goggles and face shield is a must, Citric Acid is no different.
Avoid inhaling Citric Acid fumes or mist, which can cause respiratory irritation and other health problems.
Always handle Citric Acid with care and avoid splashing or spilling it.
Do not mix Citric Acid with any other chemicals or substances without first consulting a qualified professional.
RESOURCES
Chemical Tank Compatibility Chart
This Chemical Compatibility Chart provides a comparison of the chemical resistance of our Specialty Grades of Linear Low Density Polyethylene, High Density Polyethylene and Polypropylene Polymers in different chemical environments.
